Mitutoyo

Dial Test Indicator, Hori, 0 to 0.8mm

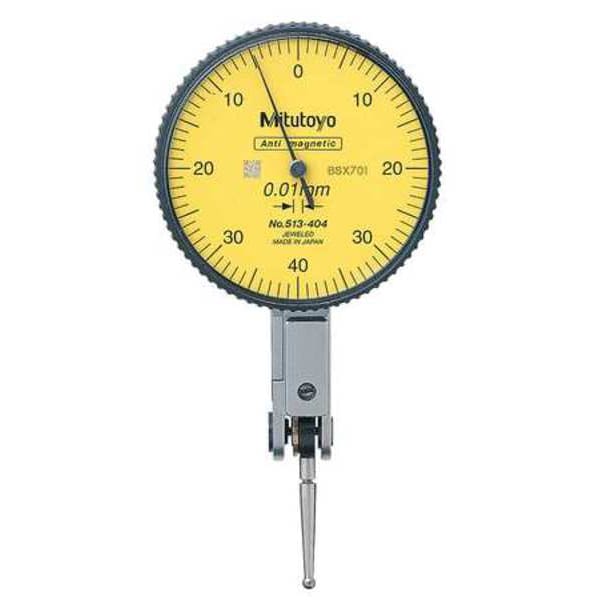

Mitutoyo Dial Test Indicator, Hori, 0 to 0.8mm 513-404-10E
Hover or click to zoom Tap to zoom
  • Graduations: 0.01 mm
  • Range: 0 mm to 0.8 mm
  • Features: Performs Easy and Accurate Measurement; No-Clutch Structure for Automatic Reversal of Measuring Direction; One-Piece Bezel and Crystal Design with O-Ring Provide Resistance to Water and Dust; High Sensitivity and Quick Response; Glare-Free Flat Crystal Face has a Scratch-Resistant Coating
  • Accuracy: +/-0.008 mm
  • Includes: 2 mm Carbide Point, 8 mm Stem, Clamp Ring, Test Indicator
  • Indicator Style: Horizontal
  • Contact Point Style: Carbide
  • Reading: Balanced
See full product details
$131.59

Subtotal: $131.59

Mitutoyo #513-404-10E Specifications

  • Graduations: 0.01 mm
  • Range: 0 mm to 0.8 mm
  • Features: Performs Easy and Accurate Measurement; No-Clutch Structure for Automatic Reversal of Measuring Direction; One-Piece Bezel and Crystal Design with O-Ring Provide Resistance to Water and Dust; High Sensitivity and Quick Response; Glare-Free Flat Crystal Face has a Scratch-Resistant Coating
  • Accuracy: +/-0.008 mm
  • Includes: 2 mm Carbide Point, 8 mm Stem, Clamp Ring, Test Indicator
  • Indicator Style: Horizontal
  • Contact Point Style: Carbide
  • Reading: Balanced
  • Bearing Type: Jeweled
  • Series: Mitutoyo 513 Standard
  • Dial Reading: 0-40-0
  • Item: Horizontal Dial Test Indicator
  • Standards: AGD
  • Dial Size: 40 mm
  • Range per Revolution: 0.8 mm
  • Dial Color: Yellow
  • Contact Point Dia.: 2 mm
  • Long Form Calibration Certificate: No
  • Operation Type: Lever-Style
  • Dimension Type: Metric
  • Mounting Style: Dovetail
  • Included Certification: Inspection Certificate
  • Stem Thread Size: M8 x 1
  • Includes Case: Yes
  • Test Indicator Style: Horizontal
  • Minimum Measurement - mm: 0 mm
  • Contact Point Material: Carbide
  • Non-Magnetic Tip: Yes
  • Number of Indicators: 1
  • Max. Measuring Force: 0.3 N
  • Contact Point Shape: Ball
  • Stylus Length: 20.9 mm
  • Maximum Measurement - mm: 0.8 mm
  • Non-Conductive Tip: No
  • Includes Dovetail Mount Attachments: No
  • Product Type: Horizontal Dial Test Indicator
  • Country of Origin (subject to change): Japan

Description

If you need to measure small distances, the Mitutoyo 513-404-10E Dial Test Indicator is a must. It has a range of 0 mm to 0.8 mm and is ideal for working with models, components, or other tiny objects. The dial indicator can measure within an accuracy of +/-0.008 mm. Its dial size measures 40 mm in diameter and has graduated markings from 0 to 40 on its face. Featuring a lever operation type, the test indicator also has a balanced dial reading at zero degrees. The yellow color gives it an eye catching appearance while making it easy to read the graduations. The Mitutoyo 513 Standard Dial Test Indicator will meet your needs for small measurements accurately and efficiently.
