Shop MITUTOYO

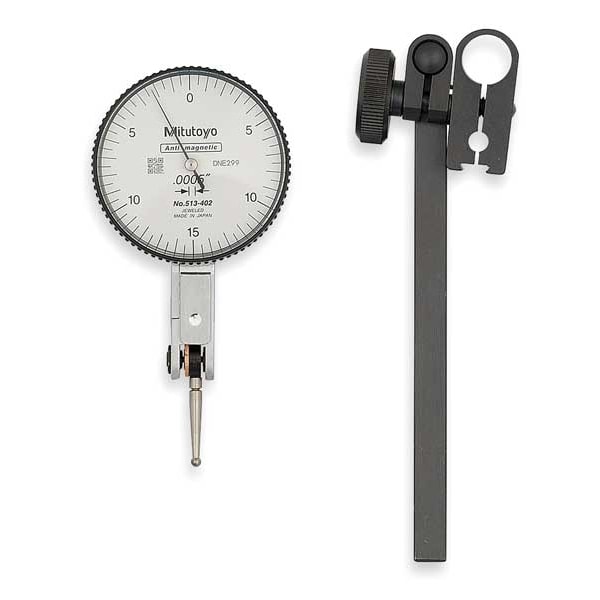

Dial Test Indicator Set, Hori, 0to0.030 In

  • Mfr # 513-402-10T

  • Zoro # G2438107

product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
0 in to 0.03 in
Features
Jeweled bearings, Glare-free crystal with scratch-resistant coating, Water and dust resistant, No-clutch structure
Accuracy
+/- 0.0005 in
Includes
3/8 in Stem, 5/32 in Swivel Clamp, Square Arm, Stem Nut
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
513-402-10T
Zoro #
G2438107
UPC #
603908225218
Country of Origin
Japan

Dimensions

Contact Point Dia.
0.03125 in
Dial Size
40 mm
Stem Thread Size
M6
Stylus Length
0.65 in
Dimension Type
Inch
Contact Point Diameter
0.03125 in

Details

Graduations
0.0005 in
Range
0 in to 0.03 in
Features
Jeweled bearings, Glare-free crystal with scratch-resistant coating, Water and dust resistant, No-clutch structure
Accuracy
+/- 0.0005 in
Includes
3/8 in Stem, 5/32 in Swivel Clamp, Square Arm, Stem Nut
Indicator Style
Horizontal
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
Mitutoyo 513 Standard
Dial Reading
0-15-0
Range per Revolution
0.03 in
Item
Horizontal Dial Test Indicator
Dial Color
White
Long Form Calibration Certificate
No
Minimum Measurement - Inch
0 in
Contact Point Material
Carbide
Includes Case
Yes
Mounting Style
Dovetail
Included Certification
Short Form Certificate of Inspection with NIST Traceability
Contact Point Shape
Ball
Non-Magnetic Tip
Yes
Test Indicator Style
Horizontal
Maximum Measurement - Inch
0.03 in
Includes Dovetail Mount Attachments
Yes
Non-Conductive Tip
No
Operation Type
Lever-Style
Number of Indicators
1
Max. Measuring Force
0.3 N
Product Type
Horizontal Dial Test Indicator
Inches Measured - Maximum
0.03 in
Inches Measured - Minimum
0 in
Maximum Measuring Force
0.3 N

Description

If you need a Dial Indicator that is precise and accurate, the Mitutoyo 513-402-10T Horizontal Dial Test Indicator Set is for you. This indicator has a range of 0 in to 0.03 in with graduations of 0.0005 in. It also offers an accuracy of +/-0.0005 in. The dial size is 40 mm and it has a white dial color. It comes with a lever style operation type, making it easy to use when taking measurements or readings on your work piece. If you are looking for precision and accuracy when measuring small parts, the Mitutoyo 513-402-10T Horizontal Dial Test Indicator Set will give you what you need.
