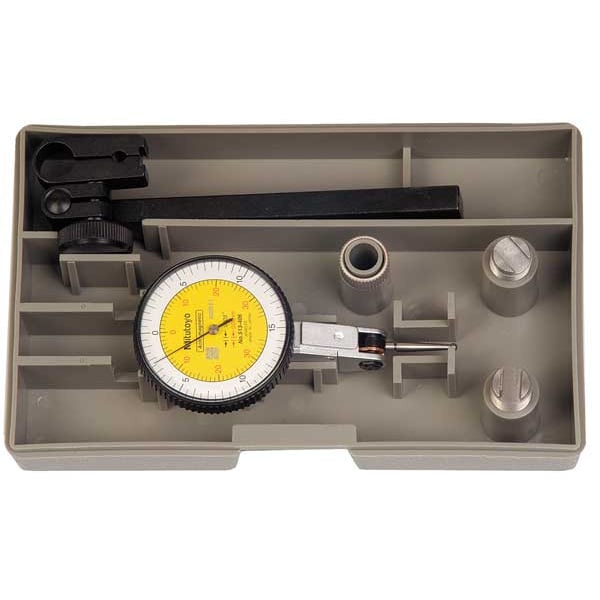

Dial Test Indicator Set, Hori, 0to0.030 In
- Mfr # 513-406-10T
- Zoro # G2850041
product price:Â
$
216.99
/ea
Free Shipping & Returns
Key Features
Graduations
0.0005 in
Range
0 mm to 0.7 mm, 0 in to 0.7 in
Features
Performs Easy and Accurate Measurement; No-Clutch Structure for Automatic Reversal of Measuring Direction; One-Piece Bezel and Crystal Design with O-Ring Provide Resistance to Water and Dust; High Sensitivity and Quick Response; Glare-Free Flat Crystal Face has a Scratch-Resistant Coating
Accuracy
4micron m
Includes
(2) Stems, (3) Carbide Points, Holding Bar, Swivel Clamp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 513-406-10T
- Zoro #
- G2850041
- UPC #
- 603908225256
- Country of Origin
- Japan
Dimensions
- Dial Size
- 40 mm
- Contact Point Dia.
- 4 mm, 8 mm
- Dimension Type
- Inch/Metric
- Stylus Length
- 0.65 in
- Stem Thread Size
- M6
- Contact Point Diameter
- 4 mm, 8 mm
Description
Item Horizontal Dial Test Indicator, Range 0 mm to 0.7 mm, 0 in to 0.7 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 4 mm, 8 mm, Dial Color White, Yellow, Dial Reading 0-15-0; 0-35-0, Dial Size 40 mm, Dimension Type Inch/Metric, Included Certification Short Form Certificate of Inspection with NIST Traceability, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.7 in, Maximum Measurement - mm 0.7 mm, Minimum Measurement - Inch 0 in
Restrictions
Hazardous material
