Mitutoyo

Digimatic Micrometer Head


product price: $985.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Resolution 0.00005"/0.001mm (or) 0.001mm
  • Range 0 to 2"/0 to 50.8mm
  • Features The Display can be Rotated up to 330? for Easy Reading in any Position
  • Includes (2) Battery (SR44)
  • Spindle Non-Rotating
See all product information

Product Information

Dimensions

Spindle Diameter 7/16 in
Dimension Type Inch/Metric
Battery Size SR44
Mouting Hub Diameter 18 mm

Details

Item Digimatic Micrometer Head
Resolution 0.00005"/0.001mm (or) 0.001mm
Range 0 to 2"/0 to 50.8mm
Features The Display can be Rotated up to 330? for Easy Reading in any Position
Includes (2) Battery (SR44)
Spindle Non-Rotating
Lock Nut Type Ring
Spindle Material Steel
SPC Output Yes
Rotating Spindle (Yes/No) No
Long Form Calibration Certificate No
Includes Battery Yes
Case Type Plastic
Operation Type Digital
Accuracy +/-0.00015 in
Maximum Measurement - Inch 2 in
Compatible Data Output Cable Mfr. No. 959149, Mfr. No. 959150
Data Output Type Cable
Case Included Yes
Functions Counting Value Composition Error, Data Hold, Data Output, Inch/mm Conversion, Low Voltage Alarm, Preset, Zero-Setting
Minimum Measurement - mm 0 mm
Minimum Measurement - Inch 0 in
Display Type LCD
Scale Finish Yes
Maximum Measurement - mm 50 mm
Spindle Shape Flat

Description

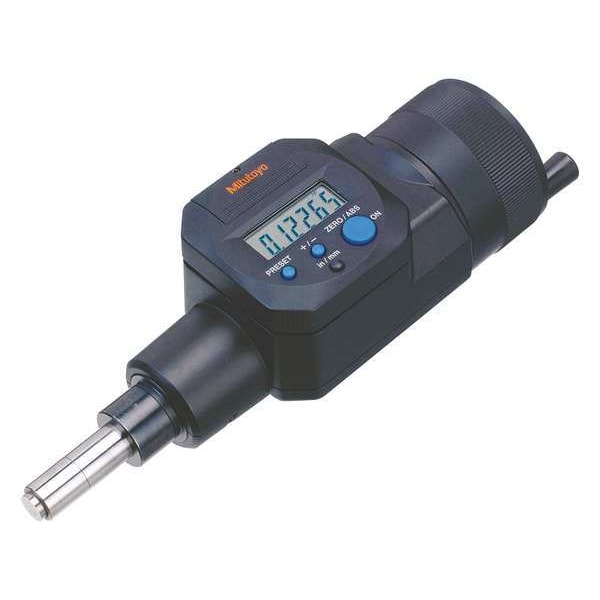

The Mitutoyo 164-164 Digimatic Micrometer Head is the ideal tool for measuring small objects. It features a range of 0 to 2"/0 to 50.8mm and resolution of 0.00005"/0.001mm 0.001mm, with an accuracy of +/-0.00015 in.. The digital micrometer head has a non-rotating spindle that provides added convenience when measuring smaller objects or parts with long shafts or posts. The display can be rotated up to 330? for easy reading in any position, which is particularly useful when the object being measured is close to the body or overhead. With SPC output, you can easily transfer measurements onto your computer for documentation purposes. If you're looking for a simple way to measure small objects, look no further than the Mitutoyo 164-164 Digimatic Micrometer Head.

Restrictions

  • Hazardous material
