  13. Digital Caliper, 0 to 40 In

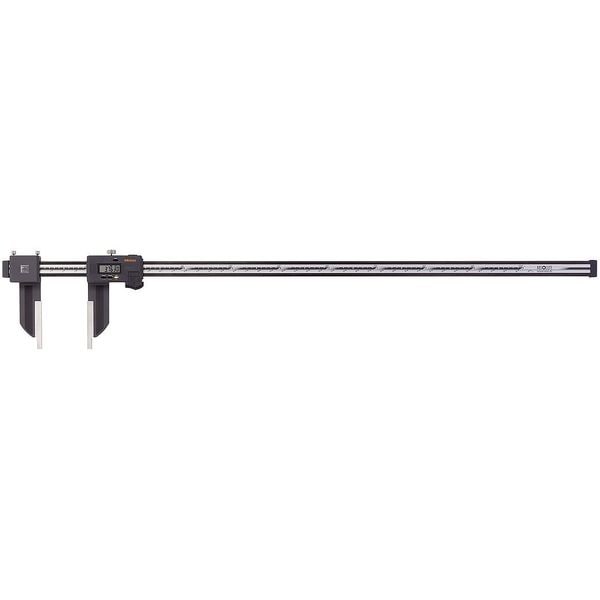

Mitutoyo Digital Caliper, 0 to 40 In 552-314-10 - main

Digital Caliper, 0 to 40 In

  • Mfr # 552-314-10

  • Zoro # G1066721

product price: $2,569.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Carbon Fiber
Caliper Range
0-40 in /0-1000mm
Accuracy
+/- 0.002 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
552-314-10
Zoro #
G1066721
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
5 7/8 in
Battery Size
SR44
Dimension Type
Inch/Metric
Measures Outside Dimension
No
Measures Inside Dimension
Yes
Measures Depth
No

Details

Item
Long Range Digital Caliper
Caliper Material
Carbon Fiber
Caliper Range
0-40 in /0-1000mm
Accuracy
+/- 0.002 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP66
Absolute Positioning
Yes
Features
Control Buttons on Face, Offset, Origin/Preset, Zero/ABS, Hold and Inch/mm, Absolute Scales
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Compatible SPC Cable
Mfr. No. 05CZA624, Mfr. No. 05CZA625
Jaw Shape
Standard
Minimum Measurement - mm
0 mm
Range
0 in to 40 in, 0 to 1,000 mm
Data Output Connection Type
Digimatic
Maximum Measurement - mm
1,000 mm
With Locking Nut
Yes
Display Type
LCD
Jaw Actuation Type
Slide
Measurements
Inside
Case Type
Wooden
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Functions
Origin-Set, Zero, Presetting, Offsetting, Data Hold, Data Output, inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Maximum Measurement - Inch
40 in
Minimum Measurement - Fractional Inch
0 in
Water Resistant
Yes
Coolant Resistant
Yes
Jaw Material
Carbon Fiber
Includes Case
Yes
Measures Step
No
Inches Measured - Maximum
40 in
Inches Measured - Minimum
0 in
Product Type
Digital Caliper
Millimeters Measured - Maximum
1,000 mm
Millimeters Measured - Minimum
0 mm
Battery Type
SR44
Included Certification
Certificate of Inspection
Data Output Wired Connection
Digimatic
Measurement Type
Inside

Description

Long Range Digital Caliper, Caliper Range 0-40 in /0-1000mm, Resolution 0.0005 in/0.01 mm, IP Rating IP66, SPC Output Yes, Accuracy +/- 0.002 in, Caliper Material Carbon Fiber, Absolute Positioning Yes, Jaw Depth 5 7/8 in, Long Form Calibration Certificate No, Features Control Buttons on Face, Offset, Origin/Preset, Zero/ABS, Hold and Inch/mm, Absolute Scales
