  13. Digital Caliper, 0.01mm, 67 IP

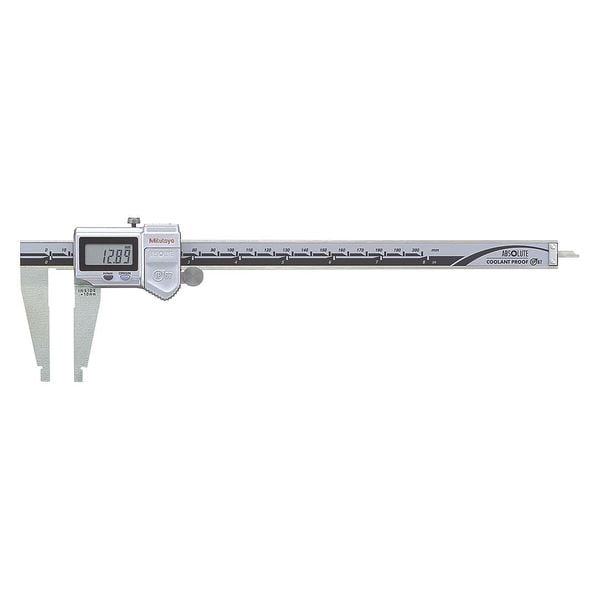

Mitutoyo Digital Caliper, 0.01mm, 67 IP 550-311-20 - main

Digital Caliper, 0.01mm, 67 IP

  • Mfr # 550-311-20

  • Zoro # G9244146

product price: $729.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
550-311-20
Zoro #
G9244146
UPC #
603908510475
Country of Origin
Japan

Dimensions

Jaw Depth
2 23/64 in
Battery Size
SR44
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Measures Depth
No
Jaw Depth - Upper Jaw
24 1/2 in
Depth Rod Shape
Rectangular

Details

Item
Nib Jaw Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.0010 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
Nib Style Jaws
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Includes Case
Yes
Minimum Measurement - mm
0 mm
Compatible SPC Cable
Mfr. No. 05CZA624; Mfr. No. 05CZA625
With Locking Nut
Yes
Graduations - Upper Scale
8 in
Range
0 in to 8 in, 0 to 200 mm
Graduations - Lower Scale
0 in
Jaw Shape
Nib-Style
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Left-Handed Operation
No
Measures Step
No
Case Type
Plastic Case
Jaw Material
Stainless Steel
Coolant Resistant
No
Includes Battery
Yes
Repeatability
0.0005 in/0.01 mm
Linear Encoder Type
Electrostatic Capacitance
Display Type
LCD
Jaw Actuation Type
Slide
Minimum Measurement - Fractional Inch
0 in
Maximum Measurement - Inch
8 in
Maximum Measurement - mm
200 mm
Measurements
Outside, Inside
Data Output Connection Type
Digimatic
Included Certification
TUV Rheinland Certification
Water Resistant
Yes
Minimum Measurement - Inch
0 in
Dust Resistant
Yes
Product Type
Digital Caliper
Measurement Type
Inside, Outside
Inches Measured - Maximum
8 in
Battery Type
SR44
Inches Measured - Minimum
0 in
Data Output Wired Connection
Digimatic
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
200 mm

Description

Nib Jaw Digital Caliper, Caliper Range 0-8 in /0-200mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.0010 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 2 23/64 in, Long Form Calibration Certificate No, Features Rounded Faces of Jaws Ideal for Accurated Inside Diameter Measurement
