  13. Digital Indicator, 0 to 12.7mm Range, Flat

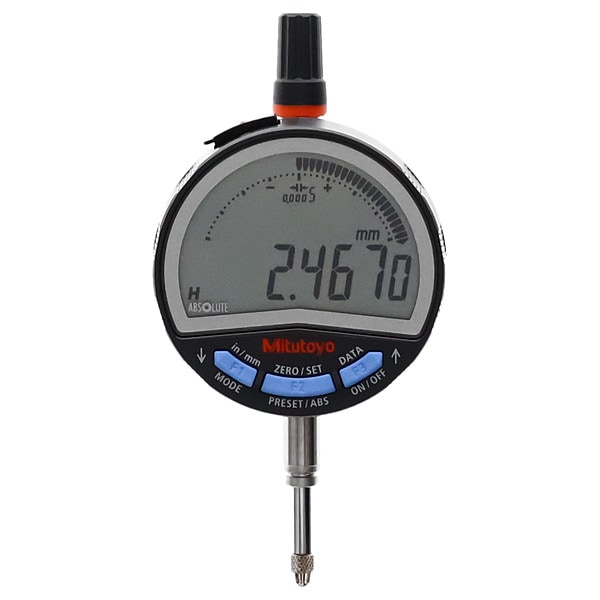

Mitutoyo Digital Indicator, 0 to 12.7mm Range, Flat 543-700B-02 - main

Digital Indicator, 0 to 12.7mm Range, Flat

  • Mfr # 543-700B-02

  • Zoro # G3553627

product price: $590.99
/ea
Free Shipping & Returns

Key Features

Series
Series 543
Range
0 in to 0.47 in
Resolution
0.01 mm
Accuracy
0.003 mm
Bezel
Rotates 330 Deg.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
543-700B-02
Zoro #
G3553627
UPC #
-
Country of Origin
Japan

Dimensions

Stem Dia.
8 mm
Contact Point Dia.
8 mm
Dial Size
66 mm
Dimension Type
Inch/Metric
Stem Thread Size
M2.5 x 0.45
Battery Size
SR44
Contact Point Diameter
8 mm
Stem Diameter
8 mm

Details

Item
Digital Indicator
Series
Series 543
Range
0 in to 0.47 in
Resolution
0.01 mm
Accuracy
0.003 mm
Bezel
Rotates 330 Deg.
Long Form Calibration Certificate
No
Features
8mm Stem, Flat Back, Origin Set, Zero Set, Go +/-Nogo, Counting Direction Change, On/Off, Data Output, Internal Calculations Using The Simple Formula Of [F(X) = Ax)]
Minimum Measurement - Inch
0 in
Back Type
Flat
SPC Output
Yes
Maximum Measurement - Inch
0.47 in
Number of Indicators
1
Max. Measuring Force
1.5 N
Includes Battery
Yes
Display Type
LCD With Analog Bar
Minimum Measurement - mm
0 mm
Maximum Measurement - mm
12 mm
IP Rating
IP42
Contact Point Shape
Radius
Operation Type
Plunger
Standards
C0920, DIN40050 Part 1, IEC 60529, JIS D0207
Non-Magnetic
No
Compatible Data Output Cable
905338
Includes Case
Yes
Included Certification
Certificate of Inspection
Case Type
Case
Bezel Type
Yes
Shock Resistant
No
Variable Resolution
No
Data Output Type
Cabled
Body Color
Black
Maximum Measuring Force
1.5 N
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
0.47 in
Millimeters Measured - Maximum
12 mm
Bezel Lock
Yes

Description

Digital Indicator, Series Series 543, Resolution 0.01 mm, Accuracy 0.003 mm, Range 0 in to 0.47 in, Bezel Rotates 330 Deg., Long Form Calibration Certificate No, Features 8mm Stem, Flat Back, Origin Set, Zero Set, Go+/-Nogo, Counting Direction Change, On/Off, Data Output, Internal Calculations Using The Simple Formula Of [F(X) = Ax)]
