  13. Heavy Duty Digimatic Caliper 18In.

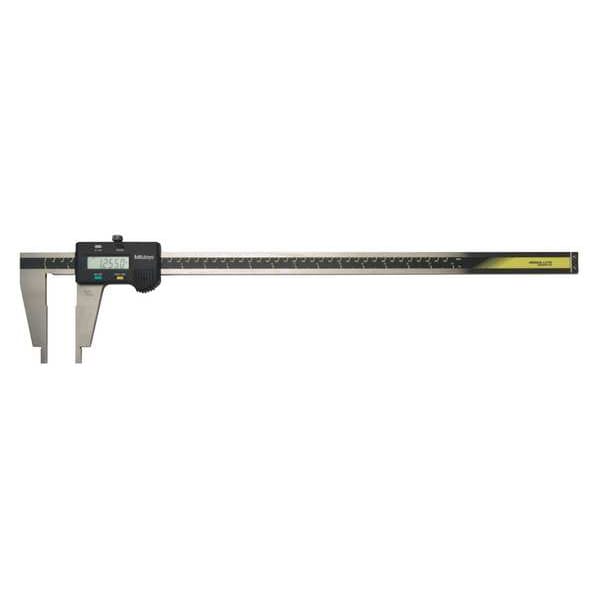

Mitutoyo Heavy Duty Digimatic Caliper 18In. 550-223-10 - main

Heavy Duty Digimatic Caliper 18In.

  • Mfr # 550-223-10

  • Zoro # G0972365

product price: $1,299.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
Jaw Depth
3 15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
550-223-10
Zoro #
G0972365
UPC #
-
Country of Origin
Japan

Dimensions

Jaw Depth
3 15/16 in
Measures Depth
No
Measures Inside Dimension
Yes
Depth Rod Shape
Rectangular
Dimension Type
Inch/Metric
Battery Size
SR44
Measures Outside Dimension
Yes

Details

Item
Nib Jaw Digital Caliper
Caliper Material
Stainless Steel
Accuracy
+/- 0.0020 in
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Long Form Calibration Certificate
No
Standards
TUV Rheinland
Compatible SPC Cable
Mfr. No. 959149; Mfr. No. 959150
Case Type
Plastic Case
Minimum Measurement - Inch
0 in
Jaw Actuation Type
Slide
Water Resistant
Yes
Range
0 in to 18 in, 0 to 450 mm
Left-Handed Operation
No
Includes Case
Yes
Maximum Measurement - Inch
18 in
Data Output Type
Cabled
Repeatability
0.0005 in/0.01 mm
Coolant Resistant
Yes
Maximum Measurement - mm
450 mm
With Locking Nut
Yes
Measures Step
No
Dust Resistant
Yes
Measurements
Outside, Inside
Linear Encoder Type
Electrostatic Capacitance
Jaw Shape
Nib-Style
Minimum Measurement - Fractional Inch
0 in
Includes Battery
Yes
Included Certification
TUV Rheinland Certification
Display Type
LCD
Minimum Measurement - mm
0 mm
Graduations - Upper Scale
18 in
Functions
Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Graduations - Lower Scale
0 in
Data Output Connection Type
Digimatic
Jaw Material
Stainless Steel
Product Type
Digital Caliper
Millimeters Measured - Maximum
450 mm
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
18 in
Inches Measured - Minimum
0 in
Measurement Type
Inside, Outside
Data Output Wired Connection
Digimatic
Battery Type
SR44

Description

Nib Jaw Digital Caliper, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.0020 in, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 3 15/16 in, Long Form Calibration Certificate No, Standards TUV Rheinland
