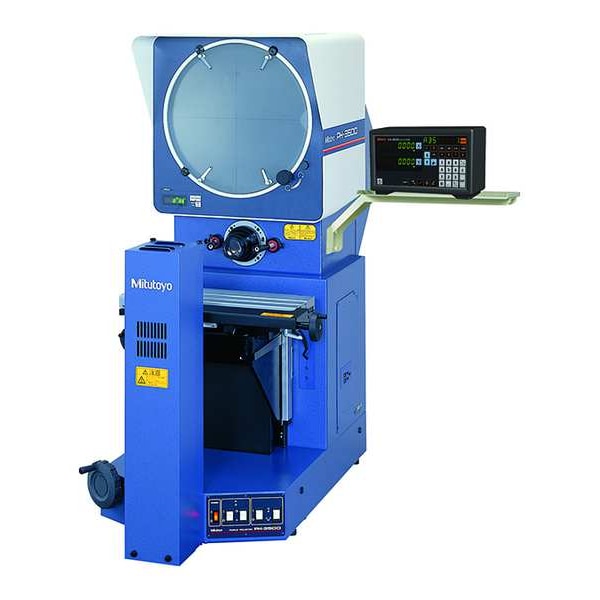

Horizontal Optical Comparator, 14" Size

  • Mfr # 172-868-11A-KA

  • Zoro # G0986312

product price:
$
16,215.99
/ea
Additional $355.00 delivery surcharge applies per item.
See details

Key Features

Image Type
Erect Image
Protractor Screen
14 in
Illumination
24V, 150 W Halogen
Magnification
10x
Table Size (In.)
17-11/16 x 5-11/16
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
172-868-11A-KA
Zoro #
G0986312
UPC #
603908583103
Country of Origin
Japan

Dimensions

Table Size (In.)
17-11/16 x 5-11/16
Size
14 in
Table Size
17 11/16 in x 5 11/16 in
Screen Size
14 in

Details

Item
Optical Comparator
Image Type
Erect Image
Protractor Screen
14 in
Illumination
24V, 150 W Halogen
Magnification
10x
Includes
Projection Lens, Work Stage, Power Cord 120 V, Halogen Bulb, Tube Fuse, Grounding Wire, Hex Wrench, Vinyl Cover
Capacity (Lb.) Max.
100
Focusing Travel
6 in
Projector Series
Mitutoyo PH-3515F
Power Supply
Corded
Resolution
0.0001 in
Table Travel
X Axis=10 in, Y Axis=6 in
Accuracy
+/-0.1% Or Less (Contour), +/-0.15% Or Less (Surface)
Reading
Linear Scale
X-Axis Table Travel
10 in
Contour Illumination
24V, 150W Halogen Bulb
Magnification - Included Lens
10X
Optical System Orientation
Horizontal
Surface Illumination
24V, 150W Halogen Bulb
Y-Axis Vertical Focus Travel
6 in
Measuring Unit
Linear Scale
Effective Table Working Area
17 11/16 in x 5 11/16 in
Adjustable Brightness
Yes
Digital Readout Interface Included
KA Counter

Description

Optical Comparator, Resolution 0.0001 in, Accuracy +/-0.1 Percent Or Less (Contour), +/-0.15 Percent Or Less (Surface), Contour Illumination 24V, 150W Halogen Bulb, Effective Table Working Area 17 11/16 in x 5 11/16 in, Image Type Erect Image, Magnification - Included Lens 10X, Measuring Unit Linear Scale, Optical System Orientation Horizontal, Projector Series Mitutoyo PH-3515F, Screen Size 14 in, Surface Illumination 24V, 150W Halogen Bulb, Table Size 17 11/16 in x 5 11/16 in
