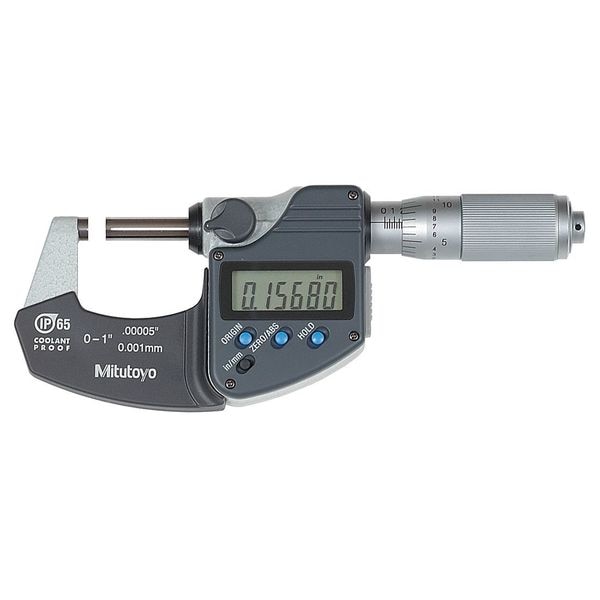

Mitutoyo Mic, 0 to 1/0 to 25.4mm, Friction, NIST, Case 293-335-32CAL - main

Mic, 0 to 1/0 to 25.4mm, Friction, NIST, Case

  • Mfr # 293-335-32CAL

  • Zoro # G7106267

product price:  $344.69
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Features
IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes
(1) Battery (SR44), (1) Certificate of Inspection Key, (1)Fitted Plastic Case
Anvil
Flat
Thimble
Ratchet
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
293-335-32CAL
Zoro #
G7106267
UPC #
-
Country of Origin
Japan

Dimensions

Dimension Type
Inch/Metric
Battery Size
SR44
Spindle Diameter
6.35 mm
Spindle Diameter1
6.35 mm

Details

Item
Coolant-proof Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Features
IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes
(1) Battery (SR44), (1) Certificate of Inspection Key, (1)Fitted Plastic Case
Anvil
Flat
Thimble
Ratchet
Long Form Calibration Certificate
No
IP Rating
IP65
SPC Output
Yes
Anvil Material
Carbide
Spindle Material
Carbide Tipped
Maximum Measurement - mm
25.4 mm
Thimble Type
Ratchet
Minimum Measurement - mm
0 mm
Anvil Shape
Flat
Coolant Resistant
Yes
Included Certification
Certificate of Inspection
Functions
Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Minimum Measurement - Inch
0 in
Display Type
LCD
Accuracy
+/- 0.00005 in
Operation Type
Digital
Maximum Measurement - Inch
1 in
Case Included
Yes
Case Type
Plastic
Includes Battery
Yes
Data Output Type
Cabled
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No.05CZA663
Rotating Spindle
Yes
Inches Measured - Maximum
1 in
Spindle Shape
Flat
Frame Material
Iron
Millimeters Measured - Maximum
25.4 mm
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in

Description

IP65 Digital Outside Micrometer, Range 0 in to 1 in, 0 to 25.4 mm, Resolution 0.00005 in/0.001 mm, Accuracy +/- 0.00005 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Long Form Calibration Certificate No, Coolant Resistant Yes, Dimension Type Inch/Metric, Included Certification Certificate of Inspection, Jaw Depth Not Applicable, Operation Type Digital, Thimble Type Ratchet, Anvil Material Carbide, Anvil Shape Flat, Battery Size SR44, Case Included Yes, Case Type Plastic

Restrictions

Hazardous material
