This item is Discontinued.

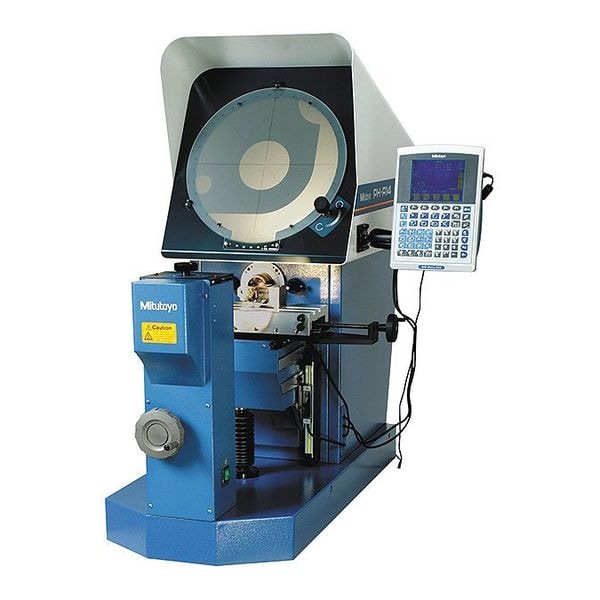

Mitutoyo PH-A14 Profile Projector with QM Data 64PKA087

PH-A14 Profile Projector with QM Data (Discontinued)

  • Mfr # 64PKA087
  • Zoro # G0581712
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
64PKA087
Zoro #
G0581712
UPC #
603908569251
Country of Origin
Japan

Dimensions

Width (In.)
24.10
Dia. (In.)
14
Length (In.)
24.10
Height (In.)
45.6
Depth (In.)
48.80
Table Size
16 in x 6 in
Screen Size
14 in

Details

Item
Optical Comparator
Type
Profile Projector and 2D Data Processing Unit
Includes
Projection Lens Set, Work Stage, Power Cord, Halogen Bulb, Fuse, Grounding Wire, Hex Wrench
Power Source
120V AC, 50/60Hz
For Use With
Profile , PH-A14
Application
Thread Pitch Measurements
Surface Illumination
24V, 150W Halogen Bulb
Resolution
0.00005 in/0.001mm
Effective Table Working Area
16 in x 6 in
Accuracy
+/-0.1% Or Less (Contour), +/-0.15% Or Less (Surface)
X-Axis Table Travel
8 in
Image Type
Inverted Image
Y-Axis Vertical Focus Travel
4 in
Measuring Unit
Linear Scale
Magnification - Included Lens
10X
Power Supply
Corded
Contour Illumination
24V, 150W Halogen Bulb
Projector Series
Mitutoyo PH-A14
Optical System Orientation
Horizontal

Description

The Mitutoyo 64PKA087 Profile Projector and 2D Data Processing Unit is a high-performance optical comparator that provides the user with enhanced accuracy. The Profile Projector comes complete with a QM data processing unit, allowing you to process two-dimensional coordinate data on the computer screen. This feature will help streamline your workflow by eliminating the need for cumbersome calculations. It also features an illuminated working area of 16 in x 6 in., which will allow you to take measurements more accurately. The 24V, 150W Halogen Bulb illuminates both the surface and contour of your workpiece. The Mitutoyo 64PKA087 Profile Projector is ideal for thread pitch measurements, so you can be sure it's exactly what you need.
