This item is Discontinued.

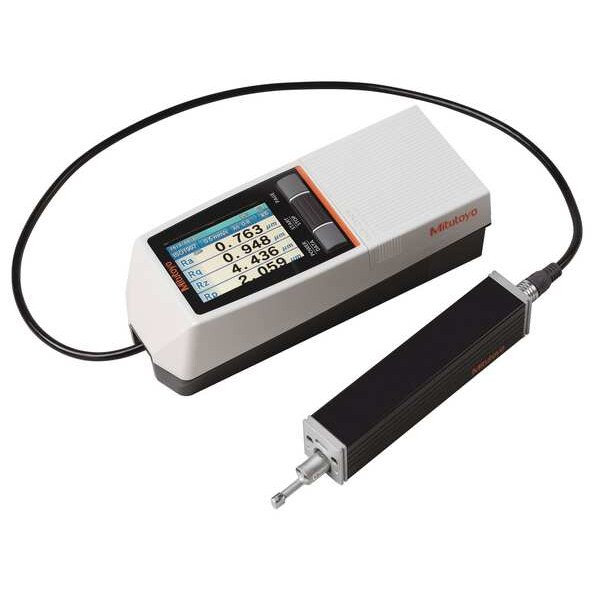

Mitutoyo Surface Roughness Tester, 17.5mm Range 178-563-12A

Surface Roughness Tester, 17.5mm Range (Discontinued)

  • Mfr # 178-563-12A
  • Zoro # G0581852
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
178-563-12A
Zoro #
G0581852
UPC #
603908539384
Country of Origin
Japan

Dimensions

Sampling Length (In.)
0.003 in, 0.01 in, 0.03 in, 0.1 in
Arbitrary Length (In.)
0.300 to16mm (0.01mm interval)
Dimensions (In.)
Display 2-3/64 in L x 2-19/32 in W x 6-19/64 in H, Drive Unit 6-55/64 in L x 2-19/32 in W x 2 in H
Cut Off Length (In.)
0.003 in, 0.01 in, 0.03 in, 0.1 in
Transverse Cutoff Length
0.003 in, 0.01 in, 0.03 in, 0.1 in
Display Screen Size
2.4 in
Probe Tip Radius
5 um
Sampling Length
0.003 in, 0.01 in, 0.03 in, 0.1 in
Dimensions - Drive Unit
7.80 in x 10.80 in x 4.30 in
Sampling Range Arbitrary Length
0.30 mm to 16 mm (0.01 mm Interval)
Dimensions - Display Unit
6.30 in x 2.05 in x 2.60 in

Details

Item
Portable Surface Roughness Tester with External Display
Measuring Range
17.50 mm
Profile
No
Number of Sampling Spans
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Features
Up To 10 Measurement Conditions And One Measured Profile Can Be Stored In The Internal Memory, Color Graphic Display, The Display Interface Supports 16 Languages, Which Can Be Freely Switched, Access To Each Feature Can Be Password-Protected, Which Prevents Unintended Operations And Allows You To Protect Your Settings, An Alarm Warns You When The Cumulative Measurement Distance Exceeds A Preset Limit
Analysis Graph
BAC, ADC
Output
USB I/F, Digimatic Output, Printer Output, RS-232C I/F, Foot SW I/F
Probe
5 micron
Includes
Connecting Cable, Roughness Specimen (Ra 3.00micron m), Carrying Case, Calibration Stage, Protective Sheets For Display, AC Adapter, Operation Manual, Quick Reference Manual, Warranty
Tester Series
Marsurf Pocket Surf IV
Drive Unit
Retractable
For Use With
SJ-210
Power Supply
Battery and AC Adapter
Detector
0.75 mN
Detector Measuring Force
4 mN
Display Type
LCD
Measuring Condition Standards
JIS82, JIS94, JIS01, ISO97, ANSI, VDA
Measuring Range (In.)
0.69 in
Includes Battery
No
Display Languages
Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch
Data Output Connection Type
USB, Digimatic, Printer, RS232C, Foot
Compatible Data Output Cable
Mfr. No. 12BAA303
Includes Case
Yes
Includes Printer
No
Profile Resolution
14170 microinch /0.8 microinch (360 micron/0.02 micron), 4000 microinch /0.2 microinch (100 micron/0.006 micron),1000 microinch /0.08 microinch (25 micron/0.002 micron)
Probe Positions
90 degrees
SPC Output
Yes
Probe Sensor Type
Differential; Inductance
Parameters Measured
A1, A2, AR, HSC, Htp, Mr1, Mr2, Possible Customize, R, R ¿ c, R¿a, R¿q, R3z, Ra, Rc, Rk, Rku, Rlr, Rmax, Rmr, Rmr(c), Rp, RPc, Rpk, Rpm, Rppi, Rq, Rsk, Rsm, Rt, Rv, Rvk, Rx, Ry, Rz, Rz1max, RzJIS, S, tp, Vo
Data Output Type
Cabled
Number of Parameters Measured
41
Calibration Functions
Saves Last Inputted Nominal Value of Specimen/Average Calibration With Multiple Measurement (Max.5 Times) Is Available
Display Functions
LCD
Memory Storage Capacity
Internal Memory: Measurement Condition (10 Sets), Measured Profile (1 Set), Memory Card (Option): 500 Measurement Conditions, 10000 Measured Profiles, 500 Display Images, Text File (Measurement Conditions /Measured Profile / Assessed Profile / Bearing Area Curve / Amplitude Distribution Curve)
Case Type
Carrying Case
Drive Unit Principle
Retractable
Digital Filter Type
Gaussian, 2CR75, PC75
Measuring Range (mm)
17.50 mm
Green Environmental Attribute
Product is Rechargeable
Operating Position
Any Position
Product Type
Portable Surface Roughness Tester with External Display

Description

Portable Surface Roughness Tester with External Display, Features Up To 10 Measurement Conditions And One Measured Profile Can Be Stored In The Internal Memory, Color Graphic Display, The Display Interface Supports 16 Languages, Which Can Be Freely Switched, Access To Each Feature Can Be Password-Protected, Which Prevents Unintended Operations And Allows You To Protect Your Settings, An Alarm Warns You When The Cumulative Measurement Distance Exceeds A Preset Limit, Measuring Range 17.50 mm
