  7. Test Indicator Set, Swl Hd, 0 to 0.020 In

This item is Discontinued.

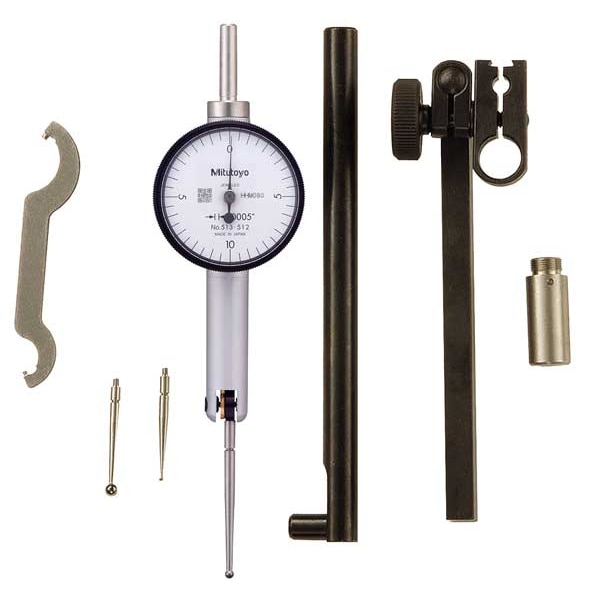

Mitutoyo Test Indicator Set, Swl Hd, 0 to 0.020 In 513-512-10T

Test Indicator Set, Swl Hd, 0 to 0.020 In (Discontinued)

  • Mfr # 513-512-10T
  • Zoro # G2089175
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513-512-10T
Zoro #
G2089175
UPC #
603908005223
Country of Origin
Japan

Dimensions

Contact Point Length
37.4mm
Contact Point Dia.
0.039 in, 0.118 in
Dial Size
1.25 in
Stylus Length
37.4 mm
Dimension Type
Inch
Stem Thread Size
M4 x 0.35 mm

Details

Graduations
0.0005 in
Range
0 in to 0.02 in
Features
Jeweled Bearings, Glare Free Scratch Resistant Crystal, Finish Satin Chrome
Accuracy
+/-0.0005 in
Includes
Holding Rod, Inch Holding Bar, Stem, Swivel Clamp
Indicator Style
Swivel Head
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
513 Pocket Type
Dial Reading
0-10-0
Dial Color
White
Item
Horizontal Dial Test Indicator
Range per Revolution
0.02 in
Standards
ANSI
Long Form Calibration Certificate
No
Number of Indicators
1
Maximum Measurement - Inch
0.02 in
Includes Case
Yes
Max. Measuring Force
0.03 N
Mounting Style
Holding Bars
Test Indicator Style
Horizontal
Included Certification
Short Form Certificate of Inspection with NIST Traceability
Contact Point Shape
Ball
Contact Point Material
Carbide
Minimum Measurement - Inch
0 in
Non-Conductive Tip
No
Includes Dovetail Mount Attachments
Yes
Operation Type
Lever-Style
Non-Magnetic Tip
Yes

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.02 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 0.039 in, 0.118 in, Dial Color White, Dial Reading 0-10-0, Dial Size 1.25 in, Dimension Type Inch, Included Certification Short Form Certificate of Inspection with NIST Traceability, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.02 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style
