  11. Sup-R-Sleeve Sleeve Anchor, 3/8" Dia., 4" L, Stainless Steel Plain, 5 PK
Shop All Sleeve Anchors
Mkt Fastening

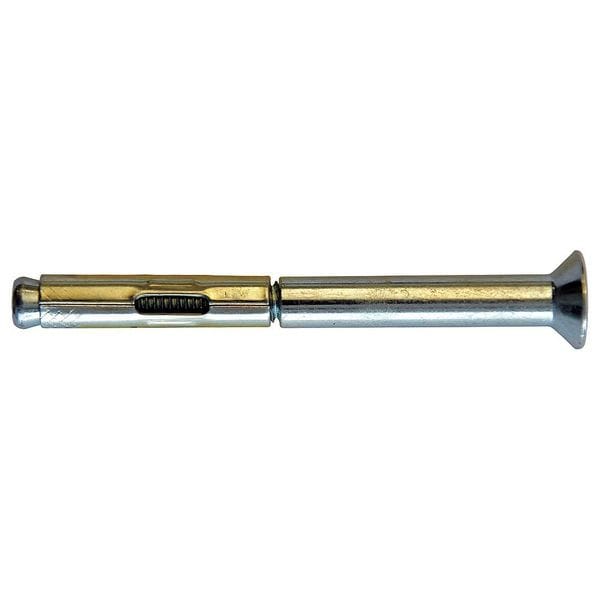

Sup-R-Sleeve Sleeve Anchor, 3/8" Dia., 4" L, Stainless Steel Plain, 5 PK

product price: $22.85
/pk 5, $4.57/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

Flat Head
Slotted Drive
  • Compatible Material Brick
  • Overall Length 4"
  • Sub-Brand Sup-R-Sleeve
  • Material Type Stainless Steel
  • Finish Plain
See all product information

Product Information

Dimensions

Anchor Diameter 3/8"
Overall Length 4"
Drill Bit Size 3/8"
Thread Size 5/16"-18
Minimum Installation Depth 1-1/4"
Anchor Length 4 in
Minimum Hole Depth 1 1/4 in
Screw Size 3/4 in

Details

Item Sleeve Anchor
Compatible Material Brick
Sub-Brand Sup-R-Sleeve
Material Type Stainless Steel
Finish Plain
Seismic Approved No
Head Type Flat
Drive Type Slotted
ICC Approved for Cracked Concrete No
Maximum Material Thickness 2-3/4"
Ultimate Shear Strength (4,000 psi Concrete) 2,020 lb
Ultimate Tension Strength (4,000 psi Concrete) 2,960 lb
ICC Approved for Un-Cracked Concrete No
Material Grade 304
Industry Standards G.S.A. SPEC FF-S-325C, GRP II, Type 3 Class 3
Material Stainless Steel
Max. Work Thickness 2 3/4 in
Min. Embedment 1 1/4 in
Includes Nut, Washer
Minimum Ultimate Tension Strength 2,840 lb
Maximum Installation Torque 26 ft-lb
Manufacturer Location Made in USA
Material Grade/Class 18-8
Removable Permanent
Minimum Ultimate Shear Strength 1,736 lb
Minimum Material Thickness 1/16 in
Minimum Installation Torque 22 ft-lb
Maximum Ultimate Tension Strength 3,256 lb
Maximum Ultimate Shear Strength 2,524 lb
System of Measurement Inch
Series Sup-R

Description

Sleeve Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Overall Length 4 in, Thread Size 5/16 In.-18, Drive Type Slotted, Head Type Flat, Washer Outside Diameter Not Applicable, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Drill Bit Size 3/8 in, Compatible Material Masonry, Minimum Installation Torque 22 ft-lb, Maximum Installation Torque 26 ft-lb, Minimum Installation Depth 1 1/4 in, Minimum Hole Depth 1 1/4 in, Minimum Material Thickness 1/16 in
