  11. Sup-R-Sleeve Sleeve Anchor, 5/8" Dia., 3" L, Carbon Steel Zinc Plated, 5 PK
Shop All Sleeve Anchors
Mkt Fastening

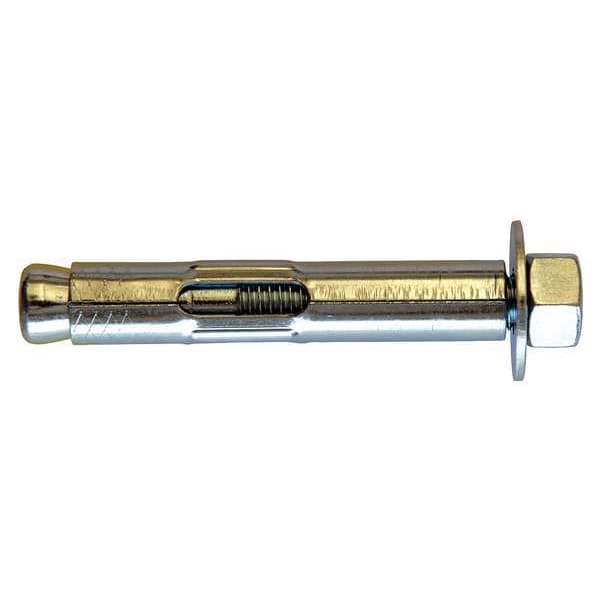

Sup-R-Sleeve Sleeve Anchor, 5/8" Dia., 3" L, Carbon Steel Zinc Plated, 5 PK

product price: $8.45
/pk 5, $1.69/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

Hex Drive
Not Graded Material Grade/Class
  • Compatible Material Brick
  • Anchor Diameter 5/8"
  • Overall Length 3"
  • Sub-Brand Sup-R-Sleeve
  • Material Type Carbon Steel
See all product information

Product Information

Dimensions

Anchor Diameter 5/8"
Overall Length 3"
Drill Bit Size 5/8"
Thread Size 1/2"-13
Minimum Installation Depth 2"
Anchor Length 3 in
Nut Width 0.75 in
Washer Outside Diameter 1.26 in
Screw Size 5/8 in
Minimum Hole Depth 2 in

Details

Item Sleeve Anchor
Compatible Material Brick
Sub-Brand Sup-R-Sleeve
Material Type Carbon Steel
Finish Zinc Plated
Seismic Approved No
Head Type Hex Nut
Drive Type Hex
ICC Approved for Cracked Concrete No
Maximum Material Thickness 1"
Ultimate Shear Strength (4,000 psi Concrete) 7,880 lb
Ultimate Tension Strength (4,000 psi Concrete) 5,970 lb
Material Grade Not Graded
ICC Approved for Un-Cracked Concrete No
Industry Standards G.S.A. SPEC FF-S-325C, GRP II, Type 3 Class 3
Max. Work Thickness 1 in
Min. Embedment 2 in
Material Steel
Maximum Installation Torque 75 ft-lb
Removable Permanent
Minimum Ultimate Tension Strength 8,428 lb
Manufacturer Location Made in USA
Minimum Ultimate Shear Strength 9,992 lb
Maximum Ultimate Shear Strength 14,524 lb
Series Sup-R
Minimum Material Thickness 1/16 in
Minimum Installation Torque 52 ft-lb
Includes Nut, Washer
Material Grade/Class Not Graded
Maximum Ultimate Tension Strength 9,656 lb
System of Measurement Inch

Description

Sleeve Anchor, System of Measurement Inch, Anchor Diameter 5/8 in, Overall Length 3 in, Thread Size 1/2 In.-13, Drive Type External Hex, Head Type Hex, Nut Width 0.75 in, Washer Outside Diameter 1.26 in, Material Steel, Material Grade/Class Not Graded, Finish Zinc Plated, Drill Bit Size 5/8 in, Compatible Material Masonry, Minimum Installation Torque 52 ft-lb, Maximum Installation Torque 75 ft-lb, Minimum Installation Depth 2 in, Minimum Hole Depth 2 in, Minimum Material Thickness 1/16 in
