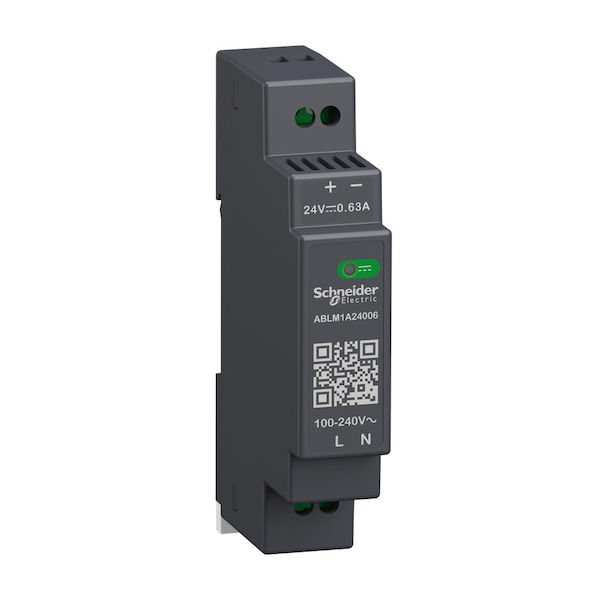

- Item
- Power Supply
- Input Voltage
- 90/264V AC
- Output Voltage - Nominal
- 24 V DC
- Output Power - Rated
- 15 W
- Current - Output
- 0.625 A
- Mounting
- DIN Rail/Panel
- Housing Material
- Plastic
- Phase
- Single
- Power Supply Style
- Switching
- Operating Temp. Range
- -20 to 55°C
- Ripple Volts Regulation
- Less Than 100mV
- Hold Up Time
- Greater Than 10 msec @ 115 V AC, Greater Than 60 msec @ 230 V AC
- IP Rating
- IP20
- Load Regulation
- Less Than 1%
- Status Indicator
- Green LED
- Protection
- Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset
- Output Voltage
- 24V DC
- Connection
- Screw
- Output Amps
- 0.625A
- Power Rating
- 15W
- Case Material
- Plastic Case
- Series
- ABL
- Style
- Switching
- Line Regulation
- Less Than 0.5%
- Hz
- 50/60 Hz
- Phase - Electrical
- Single
- Features
- Automatic Reset, It Can Be Directly Connected To Central Distribution Board, The Product Can Be Directly Mounted On The Panel
- Standards
CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cUL, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, NEC: Class 2, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1
- Power Factor
- 0.51 at 115 V AC; 0.40 at 230 V AC
- Line And Load Regulation
- Less than 0.5% network in line; Less than 1% network 0 to 100% load
- Residual Ripple
- Less than 100 mV
- Turn-On Time
- Less than 2 s
- Output Coupling
- Serial
- KW Rating
- 15 W
- Network System Compatibility
- TN; TT; IT
- Ambient Air Temperature For Operation
- -13 to 131°F (-25 to 55°C) without current derating mounting position A Less than 6561.68 ft (2000 m); 131 to 158°F (55 to 70°C) with current derating of 2.67% per°C mounting position A Less than 6561.68 ft (2000 m)
- Dielectric Strength
- 3000 V AC input/output
- Input Protection Type
- Integrated fuse (not interchangeable) 3.15 A; External protection (recommended) 20 A Curve B; External protection (recommended) 20 A Curve C; External protection (recommended) 2 A Curve B; External protection (recommended) 2 A Curve C
- Output Protection Type
- Against overload and short-circuits automatic reset; Against over temperature manual reset; Against overvoltage manual reset
- Supply
- SELV IEC 60950-1; SELV IEC 60204-1; SELV IEC 60364-4-41
- Meantime Between Failure
- 3000000 h at 77°F (25°C), full load; 1000000 h at 131°F (55°C), 80% load
- Electromagnetic Emission
- Conducted emissions IEC 61000-6-3; Radiated emissions IEC 61000-6-4
- Vibration Resistance
- 3 mm 2 to 9 Hz)IEC 60721-3-3; 10 m/s² 9 to 200 Hz)IEC 60721-3-3
- Current Consumption
- Less than 0.4 A 115 V AC; Less than 0.25 A 230 V AC
- Efficiency
- 81% 115 V AC; 81% 230 V AC
- Service Life
- 10 year(s)
- Pollution Degree
- 2
- Startup With Capacitive Loads
- 3000 µF
- Power Supply Output Current
- 0.625 A
- Holding Time
- Greater than 10 ms 115 V AC; Greater than 60 ms 230 V AC
- Power Dissipation in W
- 3.5 W
- Electromagnetic Immunity
Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Electromagnetic field immunity test - test level: 15 V/m (80 MHz to 2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2 to 2.7 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2.7 to 6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted disturbances - test level: 15 V (0.15 to 80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50 to 60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips - test level: 100% (1 cycle) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 60% (10 cycles) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 30% (25 cycles) conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1
- Overvoltage Category
- II
- Product Certifications
- CE; CUL Listed; CUL Recognized; RCM; CB Scheme; EAC; KC; NEC class 2
- Maximum Leakage Current
- 0.25 mA 240 V AC
- Operating Altitude
- Less than 6561.68 ft (2000 m) overvoltage category III; 2000 m to 5000 m overvoltage category II
- Shock Resistance
- 150 m/s² 11 ms
- Inrush Current
- 15 A 115 V; 30 A 230 V
- Electrical Shock Protection Class
- Class II without PE connection
- Current - Inrush
- 30 A
- Maximum Efficiency @ 115V AC
- 81 %
- Mean Time Between Failures (MTBF)
- 3,000,000 hr
- Input Frequency - Nominal
- 50/60 Hz
- Operating Temperature - Maximum
- 158 Degrees F
- Maximum Efficiency @ 230V AC
- 81 %
- Wire Connection Type
- Screw Terminals
- Operating Temperature - Minimum
- -13 Degrees F
- Input Frequency - Minimum
- 50 Hz
- Hold Up Time - Minimum
- 10 msec, 60 msec
- Input Frequency - Maximuim
- 60 Hz
