Shop MOLEX

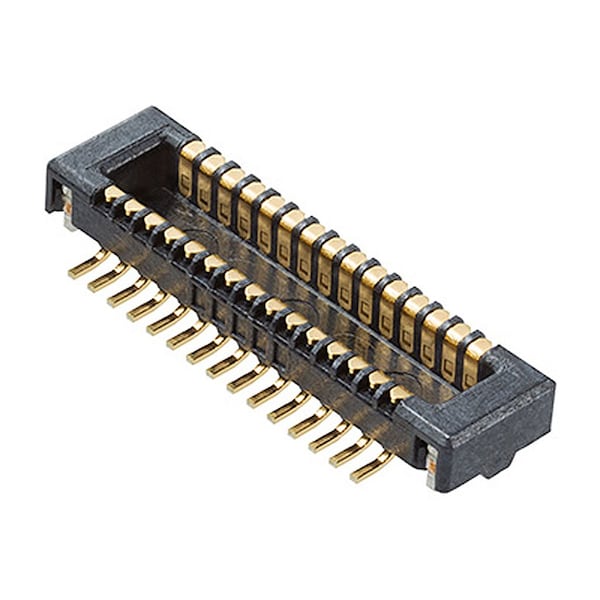

0.4 BtB Plg Assy J-BendTl 12CktEmbsTpPkg

  • Mfr # 55909-9974
  • Zoro # G900442730
product price:
$
1.29
/ea
Sold in multiples of 2500 for $3,225.00

Key Features

Application
Board-to-Board, Signal
Series
55909
PCB Locator
No
Material - Plating Mating
Gold
Number of Rows
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55909-9974
Zoro #
G900442730
UPC #
822348857920
Country of Origin
Korea, Republic of

Dimensions

Mated Height
1.50mm, 1.80mm
Mated Width
3.40mm, 4.20mm

Details

Application
Board-to-Board, Signal
Series
55909
PCB Locator
No
Material - Plating Mating
Gold
Number of Rows
2
Current - Maximum per Contact
0.3A
Voltage - Maximum
50V AC (RMS)/DC
Circuits (maximum)
12
Product Name
SlimStack
Color - Resin
Black
Termination Interface: Style
Surface Mount
Keying to Mating Part
None
Durability (mating cycles max)
30
Temperature Range - Operating
-25° to +85°C
PCB Retention
Yes
Material - Metal
Brass
Lock to Mating Part
Yes
Material - Plating Termination
Gold
Series Name
J-Bend
Breakaway
No
First Mate / Last Break
No
Pitch - Mating Interface
0.40mm
Orientation
Vertical
