Shop MOLEX

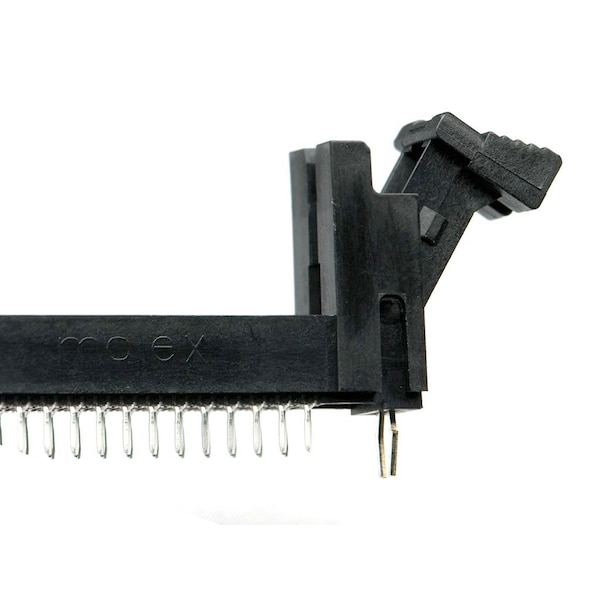

0.85Mm Ddr4 Dimm Vt T/H 0.76Aulf 288Ckt

  • Mfr # 787261029

  • Zoro # G905985638

product price:
$
7.25
/ea
Sold in multiples of 10 for $72.50

Key Features

Max. Voltage
29V AC/DC
Max. Temp.
260°C
Series
78726
Standards
CSA Certified; UL E29179
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
787261029
Zoro #
G905985638
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.50mm
PCB Thickness - Recommended
3.00mm

Details

Max. Voltage
29V AC/DC
Max. Temp.
260°C
Series
78726
Standards
CSA Certified; UL E29179
Color
White
Hole Center to Center
0.85 mm
Terminal Type
Through Hole
Material
Nylon
Terminal Finish
Tin Plated
Number of Contacts
288
Contact Finish
Gold Plated
Current Rating
0.75 A
Flammability Rating
UL 94V-0
Temperature Range - Operating
-55° to +85°C
Plating min - Mating
0.762µm
Circuits (Loaded)
288
Keying to Mating Part
None
Entry Angle
Vertical (Top Entry)
CSA
LR19980
Pitch - Mating Interface
0.85mm
UL
E29179
PCB Locator
Yes
JEDEC Outline
MO-309
Current - Maximum per Contact
0.75A
Product Name
DDR4 DIMM
Max-Cycle
2
Material - Plating Mating
Gold
Material - Resin
Nylon
Material - Plating Termination
Tin
Durability (mating cycles max)
25
Max-Temp
260
Material - Metal
Copper Alloy
Flammability
94V-0
Max-Duration
5
PCB Retention
Yes
Component Type
Socket
Voltage - Maximum
29V AC (RMS)/DC
