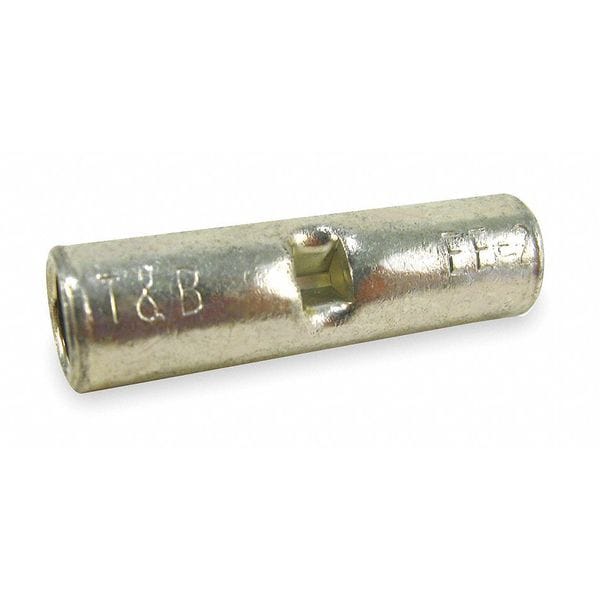

Butt Splice Wire Connector, 18 AWG Max, Metallic, None Insulation, 600 V, 100 PK
Mfr # 2A-18
Zoro # G2489085
product price:Â
$
64.29
/pk 100, $0.64/ea
Key Features
Type
Butt Splice
Color
Metallic
Minimum Wire Size
22 AWG
Insulation Material
None
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2A-18
- Zoro #
- G2489085
- UPC #
- -
- Country of Origin
- United States
- Item
- Butt Splice Wire Connector
- Type
- Butt Splice
- Color
- Metallic
- Insulation Material
- None
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 302 Degrees F
- UL 94 Flammability Rating
- V-0
- RoHS Compliant
- Yes
- Standards
- UL E9809
- Material
- Copper
- Termination Style
- Crimp
- Compatible Installation Tool Model Number
- ERG4002, WT110M, WT111M, WT112M, WT2000
- Seam Style
- Brazed
- Features
- Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: AA2
- B (inches)
- 0.12
- Recommended Tool
- ERG4002
- Terminal Series
- A
- Finish
- Electro Tin Plated
- Application Tools
- WT110M, WT111M, WT112M, WT2000, ERG4002
- Contact Material
- Copper
- Insulation Color
- Bare
- Body Material
- Copper
- Body Finish
- Tin Plated
Description
Splice Connector, Connection Type Crimp, Insulation Material None, Insulation Color Bare, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 0.63 in, Seam Style Brazed, Barrel Inside Diameter 0.12 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4002, WT110M, WT111M, WT112M, WT2000
