Shop MOLEX

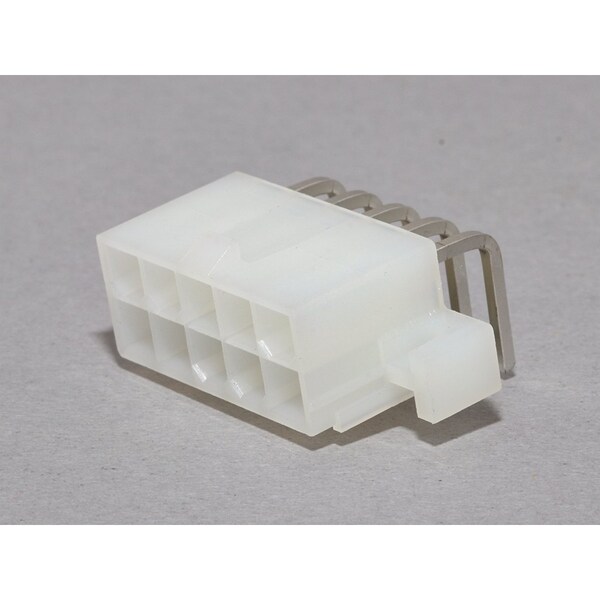

10CKT R/A MINI FIT HEADER 556910A1

  • Mfr # 39-29-1108

  • Zoro # G100415466

product price:
$
1.89
/ea
Sold in multiples of 61 for $115.29

Key Features

PCB Thickness - Recommended
1.78mm
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Matte Tin
Current - Maximum per Contact
13.0A
Flammability
94V-0, 94V-2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
39-29-1108
Zoro #
G100415466
UPC #
-
Country of Origin
Mexico
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Matte Tin
Current - Maximum per Contact
13.0A
Flammability
94V-0, 94V-2
PCB Locator
Yes
Pitch - Termination Interface
4.20mm
Circuits (maximum)
10
Plating min - Termination
2.540µm
Material - Plating Termination
Matte Tin
Lock to Mating Part
Yes
Circuits (Loaded)
10
Plating min - Mating
2.540µm
Pitch - Mating Interface
4.20mm
Durability (mating cycles max)
30
Polarized to PCB
Yes
Max. Cycles at Max. Process Temperature
1
Material - Metal
Brass
Shrouded
Fully
PCB Retention
Yes
Termination Interface: Style
Through Hole
Process Temperature max. C
260
Orientation
Right Angle
Polarized to Mating Part
Yes
CSA
LR19980
Voltage - Maximum
600V
Number of Rows
2
Duration at Max. Process Temperature (seconds)
5
UL
E29179
Material - Resin
Nylon
Color - Resin
Natural
