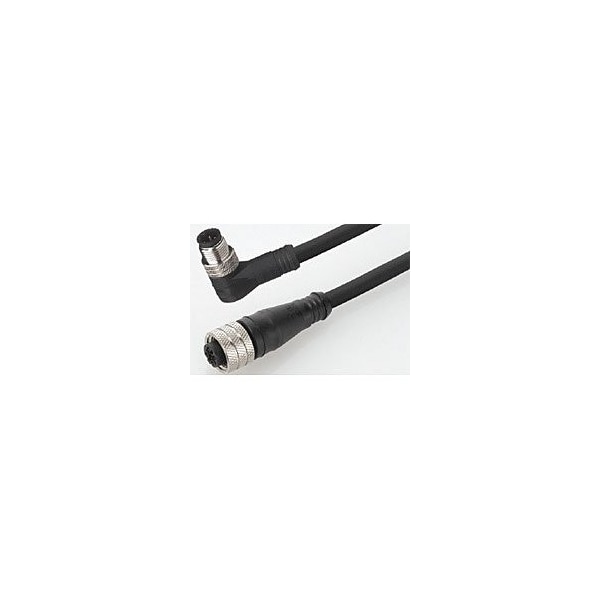

Shop MOLEX

MIC 5P M/MFE 5M No 22AWG PVC

  • Mfr # 1200660434

  • Zoro # G2745188

product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

Wire Size AWG
22
Material - Cable Jacket
PVC
Wire/Cable Type
UL 2661
Poles
5
Keyway
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200660434
Zoro #
G2745188
UPC #
78678826838
Country of Origin
Mexico

Dimensions

Wire Size AWG
22
Cable Diameter
5.72mm (.225")
Cable Length
5.0m (16.40')

Details

Material - Cable Jacket
PVC
Wire/Cable Type
UL 2661
Poles
5
Keyway
Single
Color - Cable Jacket
Yellow
Coupling Style
Threaded
Voltage - Maximum
250V AC/DC
Material - Plating Mating
Gold
Material - Connector Body
PVC
Current - Maximum per Contact
4.0A
Material - Coupling Nut
Nickel-plated Brass
UL
E152210
Temperature Range - Operating
-20°C to +105°C
Material - O-Ring
Fluoro-elastomer
Gender
Female-Male
CSA
LR6837
Orientation
Straight to Straight
Product Name
Micro-Change (M12)
IP Rating
IP67
Connector End A
Micro-Change (M12)
Series
120066
Connector End B
Micro-Change (M12)
Material - Contact
Copper Alloy
Type
Double Ended
LED Indicator
No
