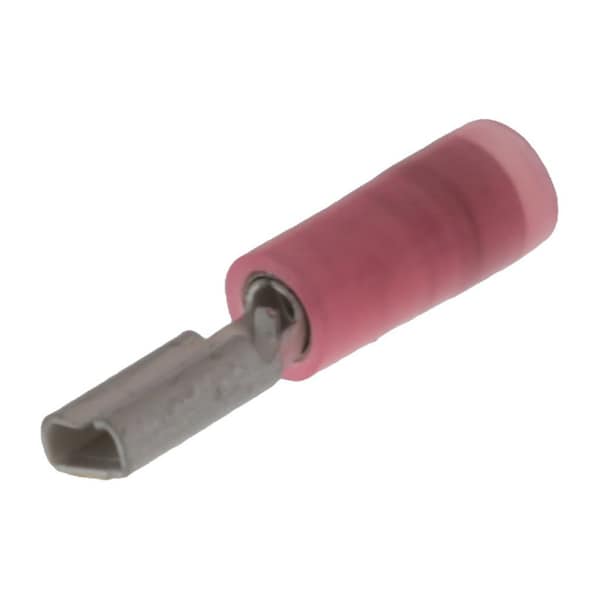

Molex .110X.032 Female Qd Avikrimp (Aa-8134) 190190004 - main

.110X.032 Female Qd Avikrimp (Aa-8134)

  • Mfr # 190190004

  • Zoro # G105899674

product price: $0.25
/ea
Sold in multiples of 400 for $100.00

Key Features

Insulation Color
Red
Insulation Type
Nylon (PA)
Wire Range
22 to 18 AWG
Connection Type
Female, Crimp or Compression
Seam
Closed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190190004
Zoro #
G105899674
UPC #
-
Country of Origin
United States

Dimensions

Tab Width
2.79mm
Wire Size (AWG)
18, 20, 22
Tab Thickness
0.81mm

Details

Insulation Color
Red
Insulation Type
Nylon (PA)
Wire Range
22 to 18 AWG
Connection Type
Female, Crimp or Compression
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
300V
Standards
CSA Listed; UL E79133
Connection Material
Brass
Insulation Dia
2.90mm max.
Insulated
Partial
CSA
LR18689
Gender
Female
Flammability
94V-2
Termination Interface Style
Crimp or Compression
Lock to Mating Part
None
Series
19019
Product Name
Avikrimp
Temperature Range - Operating
-65° to +105°C
Type
Quick Disconnect
Plating min - Mating
4.064µm
Material - Plating Mating
Tin
Material - Plating Termination
Tin
UL
E79133
Orientation
Straight
Glow-Wire Capable
No
Polarized to Mating Part
No
