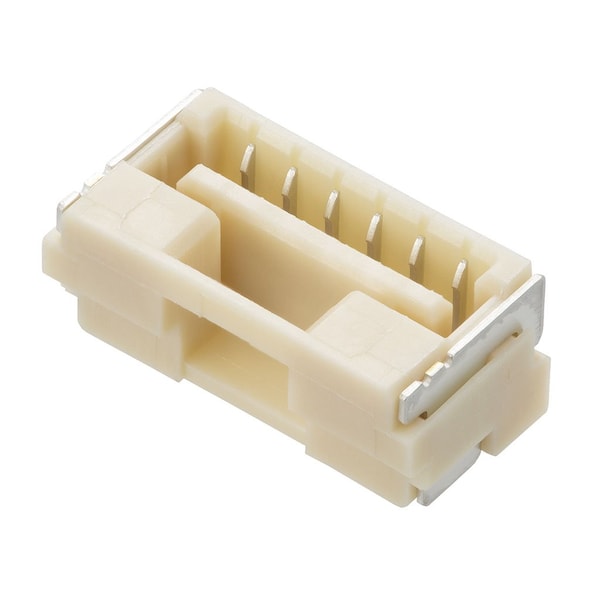

1.25 W/B Sgl S/T Rec Assy 9CktEmbsTpPkg

  • Mfr # 502382-0970

  • Zoro # G2762904


product price: $0.45
/ea
Sold in multiples of 1400 for $630.00

Key Features

Mated Height
7.80mm
UL
E29179
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Number of Rows
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
502382-0970
Zoro #
G2762904
UPC #
-
Country of Origin
Malaysia

Dimensions

Mated Height
7.80mm

Details

UL
E29179
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Number of Rows
1
PCB Retention
Yes
Voltage - Maximum
50V AC (RMS)/DC
Material - Plating Termination
Tin
Pitch - Termination Interface
1.25mm
Keying to Mating Part
Yes
Polarized to Mating Part
Yes
Material - Metal
Copper Alloy
Current - Maximum per Contact
1.0A
Pitch - Mating Interface
1.25mm
Durability (mating cycles max)
30
Guide to Mating Part
Yes
Color - Resin
Natural
Circuits (maximum)
9
Temperature Range - Operating
-40° to +105°C
Material - Resin
High Temperature Thermoplastic
Termination Interface: Style
Surface Mount
Orientation
Vertical
Plating min - Mating
1.016µm
Circuits (Loaded)
9
Plating min - Termination
1.016µm
