  9. 1.25Wb Mlp Ptg Sr St Assy 10Ckt Etp Blk

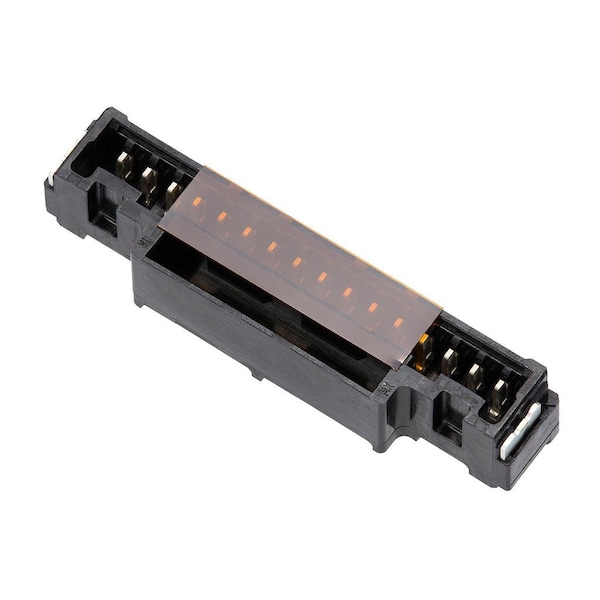

Molex 1.25Wb Mlp Ptg Sr St Assy 10Ckt Etp Blk 2059571071 - main

1.25Wb Mlp Ptg Sr St Assy 10Ckt Etp Blk

  • Mfr # 2059571071

  • Zoro # G005910011

product price: $1.15
/ea
Sold in multiples of 1000 for $1,150.00

Key Features

Color
Black
Number of Rows
1
Series
205957
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059571071
Zoro #
G005910011
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Color
Black
Number of Rows
1
Series
205957
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
Standards
CSA Certified; UL E29179
Features
Surface Mount Compatible
Terminal Type
Surface Mount
Material
Polyamide
Hole Center to Center
1.25 mm
Max. Temp.
105°C
Contact Finish
Tin-Bismuth Plated
Current Rating
3.6 A
Number of Contacts
10
Terminal Finish
Tin-Bismuth Plated
Material - Metal
Brass
UL
E29179
Product Name
Micro-Lock Plus
Robotic Placement
Vacuum Pick-Up Tape
Circuits (Loaded)
10
Temperature Range - Operating
-40° to +105°C
Material - Resin
Polyamide
Polarized to PCB
Yes
Keying to Mating Part
Yes
Polarized to Mating Part
Yes
Breakaway
No
Material - Plating Termination
Tin-Bismuth
Plating min - Mating
1.000µm
First Mate / Last Break
No
CSA
LR19980
Component Type
PCB Header
Glow-Wire Capable
No
Current - Maximum per Contact
3.6A
Guide to Mating Part
No
Durability (mating cycles max)
30
PCB Retention
Yes
PCB Locator
No
Shrouded
Fully
Material - Plating Mating
Tin-Bismuth
Lock to Mating Part
Yes
Orientation
Vertical
Stackable
No
Pitch - Mating Interface
1.25mm
Voltage - Maximum
50V AC (RMS)/DC
