  9. 1.25Wb Mlp Ptg Sr St Assy 2Ckt Etp Blk

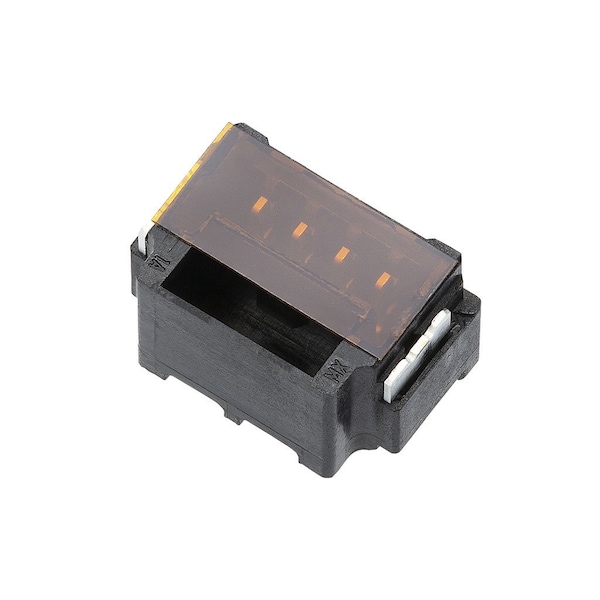

Molex 1.25Wb Mlp Ptg Sr St Assy 2Ckt Etp Blk 2059570271 - main

1.25Wb Mlp Ptg Sr St Assy 2Ckt Etp Blk

  • Mfr # 2059570271

  • Zoro # G205909860

product price: $0.54
/ea
Sold in multiples of 1000 for $540.00

Key Features

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Features
Surface Mount Compatible
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059570271
Zoro #
G205909860
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Features
Surface Mount Compatible
Color
Black
Application
Signal, Wire-to-Board
Terminal Type
Surface Mount
Current Rating
3.6 A
Terminal Finish
Tin-Bismuth Plated
Hole Center to Center
1.25 mm
Contact Finish
Tin-Bismuth Plated
Max. Voltage
50V AC/DC
Number of Contacts
2
Max. Temp.
105°C
CSA
LR19980
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Tin-Bismuth
Circuits (Loaded)
2
PCB Retention
Yes
Glow-Wire Capable
No
Material - Plating Termination
Tin-Bismuth
Component Type
PCB Header
Orientation
Vertical
Series
205957
Stackable
No
Material - Metal
Brass
Keying to Mating Part
Yes
Polarized to Mating Part
Yes
Current - Maximum per Contact
3.6A
Material - Resin
Polyamide
Robotic Placement
Vacuum Pick-Up Tape
Product Name
Micro-Lock Plus
Durability (mating cycles max)
30
Guide to Mating Part
No
Lock to Mating Part
Yes
PCB Locator
No
Voltage - Maximum
50V AC (RMS)/DC
Plating min - Mating
1.000µm
UL
E29179
First Mate / Last Break
No
Polarized to PCB
Yes
Pitch - Mating Interface
1.25mm
Breakaway
No
Shrouded
Fully
