  9. 1.25Wb Mlp Ptg Sr St Assy 8Ckt Etp Blk

This item is Discontinued.

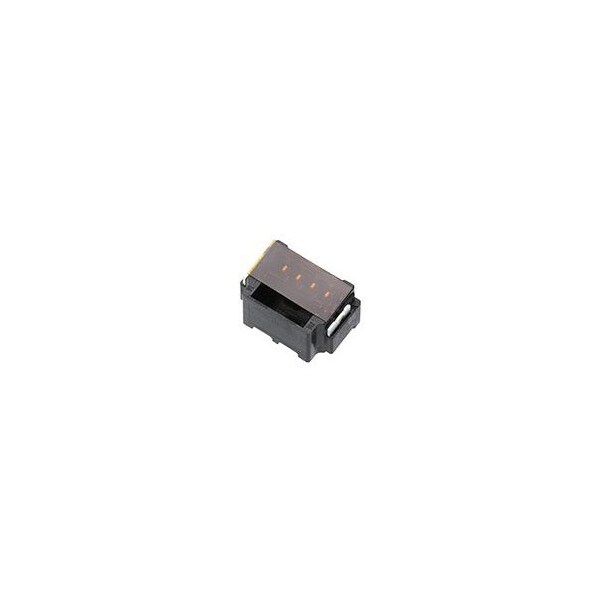

Molex 1.25Wb Mlp Ptg Sr St Assy 8Ckt Etp Blk 2059570871

1.25Wb Mlp Ptg Sr St Assy 8Ckt Etp Blk (Discontinued)

  • Mfr # 2059570871
  • Zoro # G305909821
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059570871
Zoro #
G305909821
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Features
Surface Mount Compatible
Color
Black
Application
Signal, Wire-to-Board
Current Rating
3.6 A
Terminal Type
Surface Mount
Terminal Finish
Tin-Bismuth Plated
Max. Temp.
105°C
Contact Finish
Tin-Bismuth Plated
Hole Center to Center
1.25 mm
Max. Voltage
50V AC/DC
Number of Contacts
8
Keying to Mating Part
Yes
Pitch - Mating Interface
1.25mm
Circuits (Loaded)
8
Orientation
Vertical
Guide to Mating Part
No
Lock to Mating Part
Yes
Durability (mating cycles max)
30
Breakaway
No
Material - Plating Mating
Tin-Bismuth
Voltage - Maximum
50V AC (RMS)/DC
Plating min - Mating
1.000µm
Series
205957
Robotic Placement
Vacuum Pick-Up Tape
Product Name
Micro-Lock Plus
CSA
LR19980
UL
E29179
Material - Resin
Polyamide
Glow-Wire Capable
No
Current - Maximum per Contact
3.6A
Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass
First Mate / Last Break
No
Polarized to PCB
Yes
PCB Locator
No
Polarized to Mating Part
Yes
Component Type
PCB Header
Material - Plating Termination
Tin-Bismuth
Shrouded
Fully
Stackable
No
PCB Retention
Yes
