Shop MOLEX

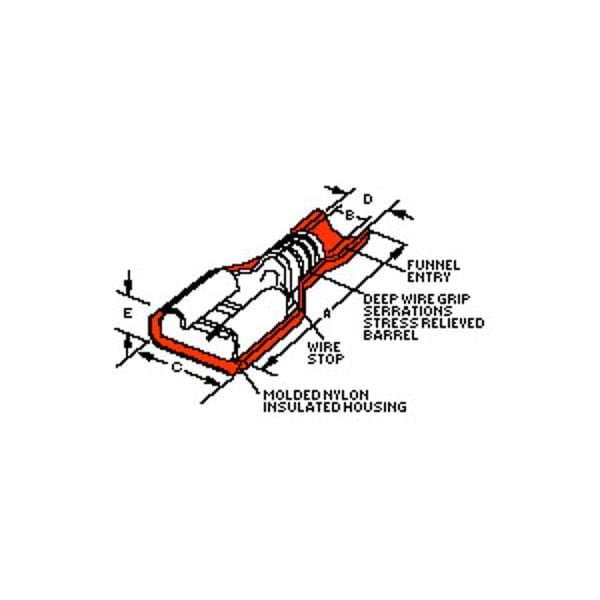

.187 X .020 Female Fiqd Expand (Aa-2202X

  • Mfr # 190030014

  • Zoro # G205900423

product price:  $0.28
/ea
Sold in multiples of 311 for $87.08

Key Features

Insulation Color
Red
Insulation Type
Nylon (PA)
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
190030014
Zoro #
G205900423
UPC #
-
Country of Origin
United States

Dimensions

Wire Size (AWG)
18, 20, 22
Tab Thickness
0.51mm
Tab Width
4.75mm

Details

Insulation Color
Red
Insulation Type
Nylon (PA)
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Connection Material
Brass
Standards
CSA Listed; UL E79133
Insulation Dia
5.84mm max.
Insulated
Fully
Series
19003
Type
Quick Disconnect
Plating min - Mating
4.064µm
CSA
LR18689
Gender
Female
UL
E79133
Flammability
94V-0
Material - Plating Mating
Tin
Orientation
Straight
Material - Plating Termination
Tin
Material - Resin
Nylon
Lock to Mating Part
None
Polarized to Mating Part
No
Termination Interface Style
Crimp or Compression
Glow-Wire Capable
No
Temperature Range - Operating
-65° to +105°C
Product Name
InsulKrimp
