  9. 2.00Mm Pitch Igrid Wire-To-Board Header, Dual Row, Right-Angle, 18 Circuits

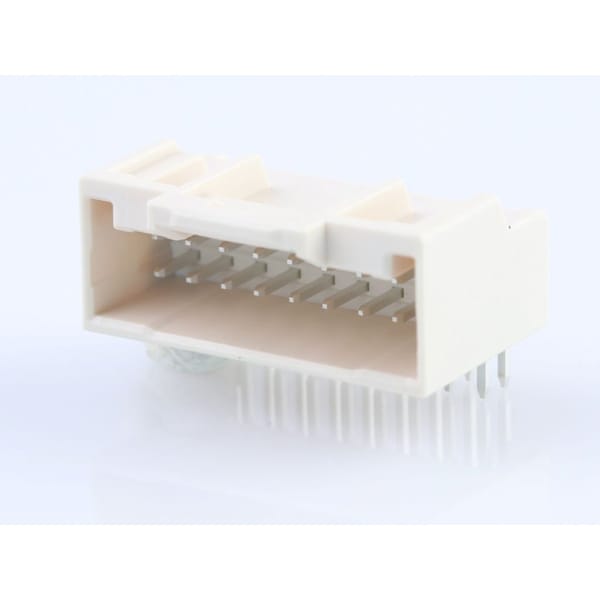

Molex 2.00Mm Pitch Igrid Wire-To-Board Header, Dual Row, Right-Angle, 18 Circuits 5018761840 - main

2.00Mm Pitch Igrid Wire-To-Board Header, Dual Row, Right-Angle, 18 Circuits

  • Mfr # 5018761840

  • Zoro # G405910475

product price: $1.15
/ea
Sold in multiples of 85 for $97.75

Key Features

Color
Natural
Number of Rows
2
Series
501876
Max. Voltage
250V AC/DC
Application
Signal, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5018761840
Zoro #
G405910475
UPC #
-
Country of Origin
Japan

Dimensions

PC Tail Length
3.20mm
PCB Thickness - Recommended
1.20mm, 1.60mm

Details

Color
Natural
Number of Rows
2
Series
501876
Max. Voltage
250V AC/DC
Application
Signal, Wire-to-Board
Hole Center to Center
2 mm
Material
Nylon
Terminal Type
Through Hole
Max. Temp.
105°C
Standards
CSA Certified; UL E29179
Number of Contacts
18
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
2 A
Contact Finish
Tin Plated
Durability (mating cycles max)
30
Glow-Wire Capable
No
Flammability
94V-0
Orientation
Right Angle
Material - Metal
Brass
Stackable
No
Voltage - Maximum
250V AC (RMS)/DC
Circuits (Loaded)
18
Pitch - Mating Interface
2.00mm
Product Name
iGrid
Current - Maximum per Contact
2.0A
Polarized to PCB
No
CSA
LR19980
PCB Retention
None
Polarized to Mating Part
Yes
PCB Locator
No
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
UL
E29179
Component Type
PCB Header
Lock to Mating Part
Yes
Material - Resin
Nylon
Breakaway
No
Material - Plating Mating
Tin
Keying to Mating Part
Yes
