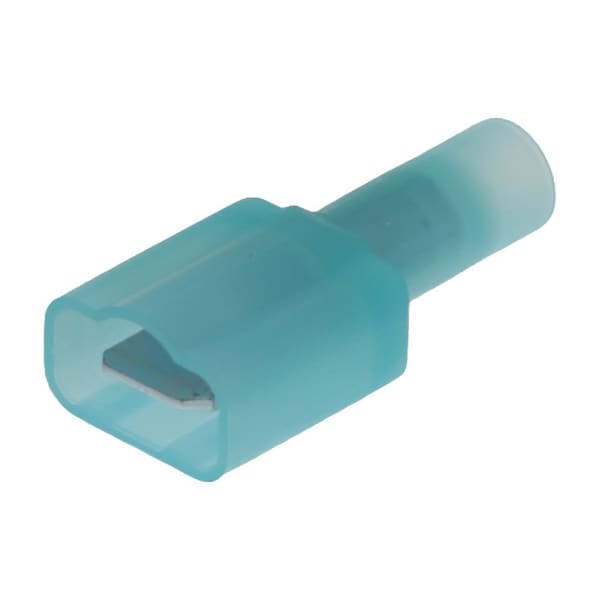

.250X.032 MALE FIQD COUPLER (BB-2262)
Mfr # 19004-0005
Zoro # G2754242
product price:Â $0.35
/ea
Sold in multiples of 350 for $122.50
Key Features
Material - Plating Termination
Zinc Chromate
Wire Insulation Diameter
4.32mm max.
Tab Thickness
0.81mm
Insulation
Nylon (PA)
Plating min - Termination
5.080µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 19004-0005
- Zoro #
- G2754242
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Wire Insulation Diameter
- 4.32mm max.
- Tab Thickness
- 0.81mm
- Wire Size mm²
- 1.30-2.00
- Wire Size AWG
- 14, 16
- Tab Width
- 6.35mm
Details
- Material - Plating Termination
- Zinc Chromate
- Insulation
- Nylon (PA)
- Plating min - Termination
- 5.080µm
- Voltage - Maximum
- 600V
- Material - Resin
- Nylon
- Orientation
- Straight
- Gender
- Male
- CSA
- LR18689
- Material - Metal
- Brass
- Barrel Type
- Closed
- Flammability
- 94V-2
- Temperature Range - Operating
- -65° to +105°C
- Plating min - Mating
- 5.080µm
- UL
- E79133
- Color - Resin
- Blue
- Material - Plating Mating
- Zinc Chromate
