Shop MOLEX

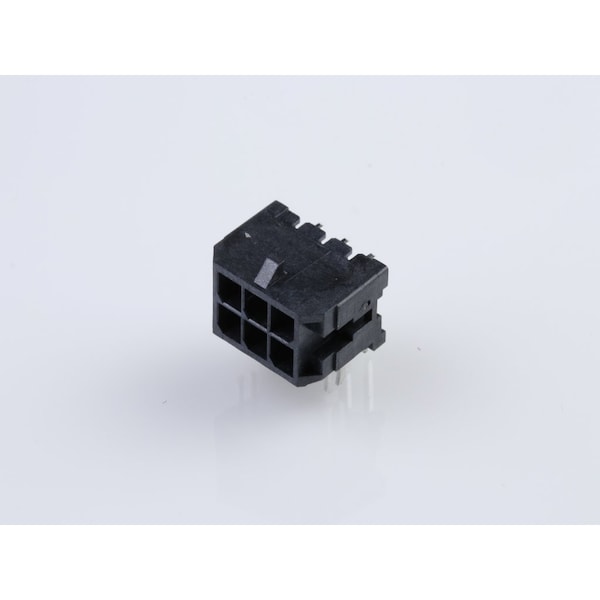

Microfit 3.0 RA PTH w/clip DR Tin 6 Ckt

  • Mfr # 43045-0621

  • Zoro # G7769998

product price:
$
1.95
/ea
Sold in multiples of 55 for $107.25

Key Features

Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Termination Interface: Style
Through Hole
CSA
LR19980
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43045-0621
Zoro #
G7769998
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
Mated Height
10.06mm

Details

Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Termination Interface: Style
Through Hole
CSA
LR19980
Glow-Wire Capable
Yes
Color - Resin
Black
Material - Metal
Brass
Polarized to PCB
Yes
Plating min - Mating
0.254µm
Flammability
94V-0
Current - Maximum per Contact
8.5A
PCB Locator
Yes
Max. Cycles at Max. Process Temperature
3
Pitch - Mating Interface
3.00mm
Orientation
Right Angle
UL
E29179
Voltage - Maximum
600V
Circuits (maximum)
6
Shrouded
Fully
Circuits (Loaded)
6
Process Temperature max. C
260
Material - Resin
High Temperature Thermoplastic
Material - Plating Mating
Tin
Durability (mating cycles max)
30
Number of Rows
2
Duration at Max. Process Temperature (seconds)
30
Surface Mount Compatible (SMC)
Yes
