Shop MOLEX

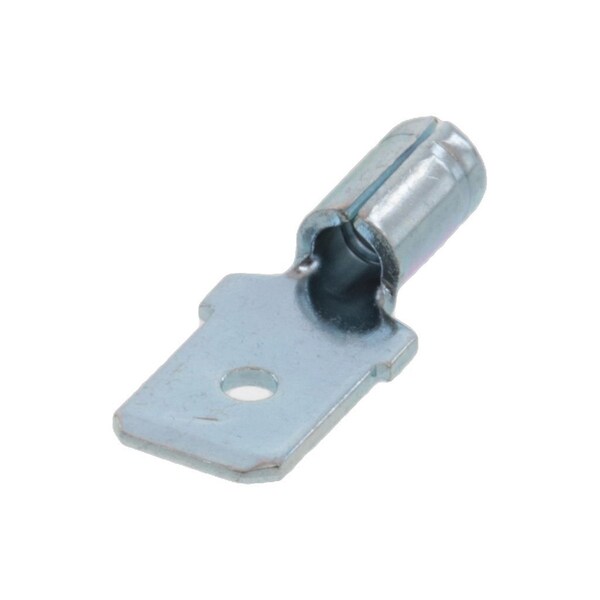

.250X.032 Male Qd Krimptite Mct-1 Spm

  • Mfr # 190220018

  • Zoro # G505899519

product price:  $0.12
/ea
Sold in multiples of 8000 for $960.00

Key Features

Insulation
None
Wire Range
16 to 14 AWG
Insulation Type
Non-Insulated
Connection Type
Male
Seam
Closed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
190220018
Zoro #
G505899519
UPC #
-
Country of Origin
United States

Dimensions

Wire Size (AWG)
14, 16
Tab Width
6.35mm
Tab Thickness
0.81mm

Details

Insulation
None
Wire Range
16 to 14 AWG
Insulation Type
Non-Insulated
Connection Type
Male
Seam
Closed
Standards
CSA Listed; UL E79133
Type
Quick Disconnect
Connection Material
Brass
Series
19022
Polarized to Mating Part
No
Product Name
Krimptite
Plating min - Mating
0.762µm
Material - Plating Mating
Zinc Chromate
Insulated
No
UL
E79133
Temperature Range - Operating
Per Wire Specification
Material - Plating Termination
Zinc Chromate
Lock to Mating Part
None
Orientation
Straight
Glow-Wire Capable
No
Voltage - Maximum
Per Wire Specification
CSA
LR18689
