  11. 2.54Mm Pitch Sl Header, Single Row, Vertical, Lcp, Shrouded, Through Hole

This item is Discontinued.

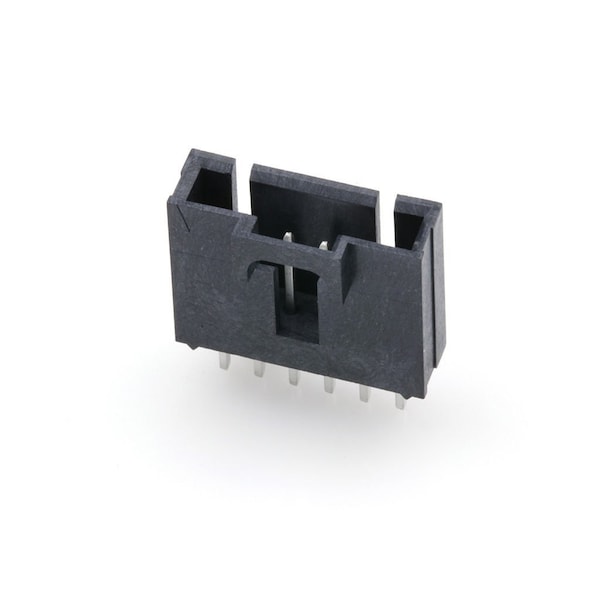

Molex 2.54Mm Pitch Sl Header, Single Row, Vertical, Lcp, Shrouded, Through Hole 1719710006

2.54Mm Pitch Sl Header, Single Row, Vertical, Lcp, Shrouded, Through Hole (Discontinued)

  • Mfr # 1719710006
  • Zoro # G205790475
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1719710006
Zoro #
G205790475
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.30mm

Details

Item
PCB Header
Color
Black
Insulation Material
Liquid Crystal Polymer
Max. Voltage
250V
Maximum Voltage
250 V
Application
Signal, Wire-to-Board
Current
3 A
Series
171971
Maximum Operating Temperature
105 Degrees C
Material
Liquid Crystal Polymer
Hole Center to Center
2.54 mm
Contact Finish
Matte Tin Plated
Current Rating
3 A
Number of Rows
1
Terminal Type
Through Hole
Number of Contacts
6
Max. Temp.
105°C
Terminal Finish
Matte Tin Plated
Plating min - Mating
2.540µm
Lock to Mating Part
Yes
Material - Resin
Liquid Crystal Polymer
Polarized to Mating Part
Yes
Keying to Mating Part
None
Circuits (Loaded)
6
Pitch - Mating Interface
2.54mm
First Mate / Last Break
No
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
PCB Retention
None
Guide to Mating Part
No
Orientation
Vertical
Component Type
PCB Header
Breakaway
No
Glow-Wire Capable
No
PCB Locator
No
Material - Plating Mating
Matte Tin
Current - Maximum per Contact
3.0A
Polarized to PCB
Yes
Product Name
SL
Material - Plating Termination
Matte Tin
Material - Metal
Brass
Maximum Conductors
6
