Shop MOLEX

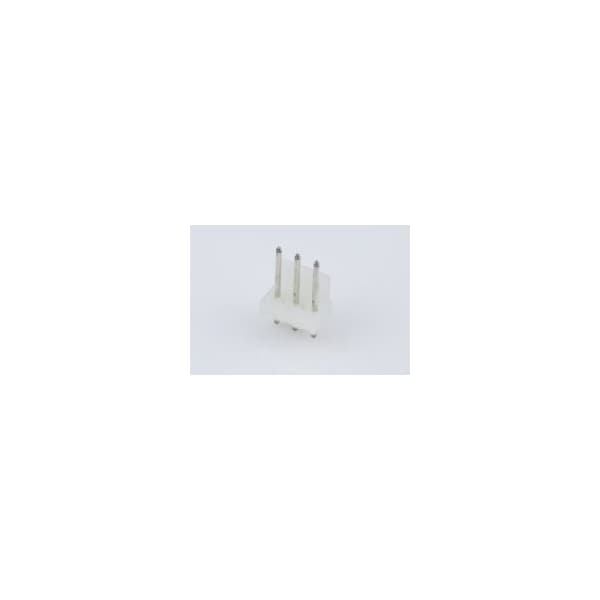

3.96mm KK Hdr Vt Pol-W RPin VrA 3Ckt

  • Mfr # 26-19-2031

  • Zoro # G4048299

product price:  $0.56
/ea
Sold in multiples of 167 for $93.52

Key Features

Circuits (maximum)
3
Material - Metal
Brass
Plating min - Mating
5.080µm
Current - Maximum per Contact
7.0A
Termination Interface: Style
Through Hole
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26-19-2031
Zoro #
G4048299
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.45mm

Details

Circuits (maximum)
3
Material - Metal
Brass
Plating min - Mating
5.080µm
Current - Maximum per Contact
7.0A
Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Number of Rows
1
UL
E29179
Material - Plating Mating
Tin
Pitch - Mating Interface
3.96mm
Material - Plating Termination
Tin
Flammability
94V-2
Plating min - Termination
5.080µm
Orientation
Vertical
Shrouded
Partial
Material - Resin
Nylon
Voltage - Maximum
250V
Color - Resin
Natural
Circuits (Loaded)
3
Durability (mating cycles max)
25
Process Temperature max. C
235
Pitch - Termination Interface
3.96mm
CSA
LR19980
Max. Cycles at Max. Process Temperature
1
