Shop MOLEX

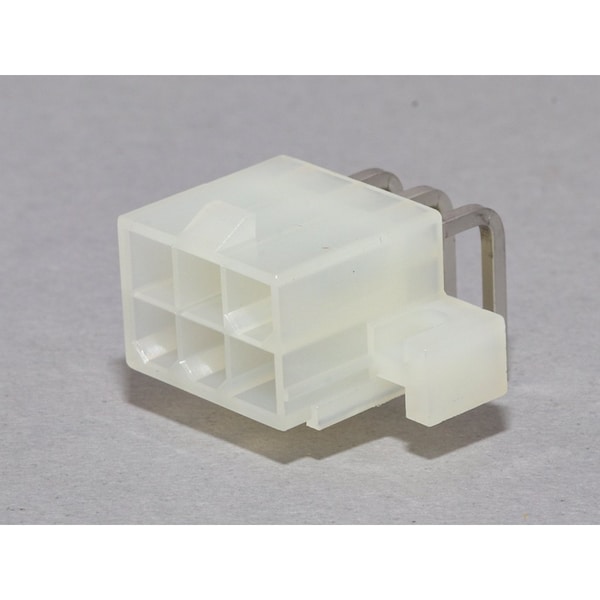

6CKT R/A MINI FIT HEADER 556906A1

  • Mfr # 39-29-1068

  • Zoro # G400416903

product price:  $1.15
/ea
Sold in multiples of 93 for $106.95

Key Features

Shrouded
Fully
Polarized to Mating Part
Yes
Orientation
Right Angle
Circuits (maximum)
6
Color - Resin
Natural
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-29-1068
Zoro #
G400416903
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Shrouded
Fully
Polarized to Mating Part
Yes
Orientation
Right Angle
Circuits (maximum)
6
Color - Resin
Natural
Max. Cycles at Max. Process Temperature
1
Durability (mating cycles max)
30
Pitch - Termination Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Material - Plating Termination
Matte Tin
Material - Plating Mating
Matte Tin
Voltage - Maximum
600V
Pitch - Mating Interface
4.20mm
Termination Interface: Style
Through Hole
Circuits (Loaded)
6
Duration at Max. Process Temperature (seconds)
5
Plating min - Termination
2.540µm
PCB Retention
Yes
Plating min - Mating
2.540µm
Material - Metal
Brass
Material - Resin
Nylon
Number of Rows
2
UL
E29179
Process Temperature max. C
260
Lock to Mating Part
Yes
Flammability
94V-2
CSA
LR19980
Current - Maximum per Contact
13.0A
Polarized to PCB
Yes
