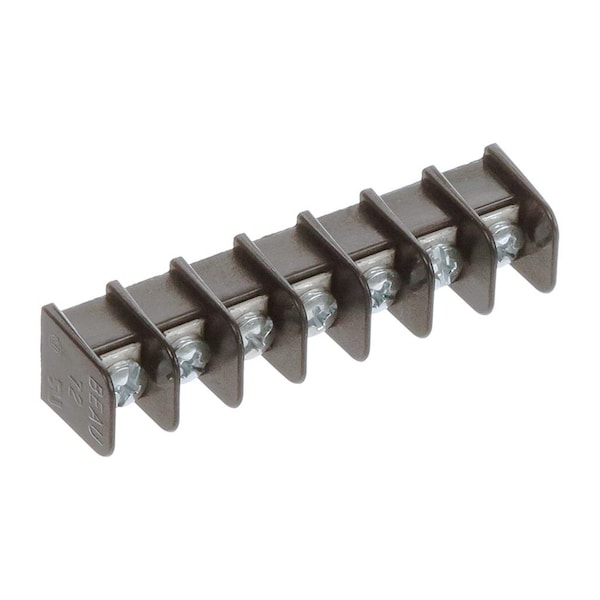

Barrier Strip, 1 Row, 300 V, 14 AWG

  • Mfr # 387206307
  • Zoro # G205918145
product price:
$
3.29
/ea
Sold in multiples of 35 for $115.15

Key Features

Number of Rows
1
Maximum Voltage
300V
For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
Temperature Range - Operating
-40° to +130°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
387206307
Zoro #
G205918145
UPC #
-
Country of Origin
Mexico
Item
Barrier Strip
Number of Rows
1
Maximum Voltage
300V
Temperature Range - Operating
-40° to +130°C
Plating min - Termination
3.810µm
Entry Angle
Horizontal
Surface Mount Compatible (SMC)
No
PCB Retention
None
Shrouded
Dual-Barrier
Circuits (Loaded)
7
Material - Metal
Brass
Polarized to Mating Part
No
Material - Resin
Polyester
Material - Plating Mating
Tin
Stackable
No
Color - Resin
Black
Material - Plating Termination
Tin
Panel Mount
No
Current - Maximum per Contact
15.0A
Lock to Mating Part
None
Pitch - Termination Interface
9.53mm
Orientation
Horizontal
Series
38720
Component Type
One Piece
Product Name
Fixed Mount Barrier

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
PCB Thickness - Recommended
3.18mm
PC Tail Length
4.80mm
