  11. Barrier Strip, 1 Row, 300 V, 14 AWG

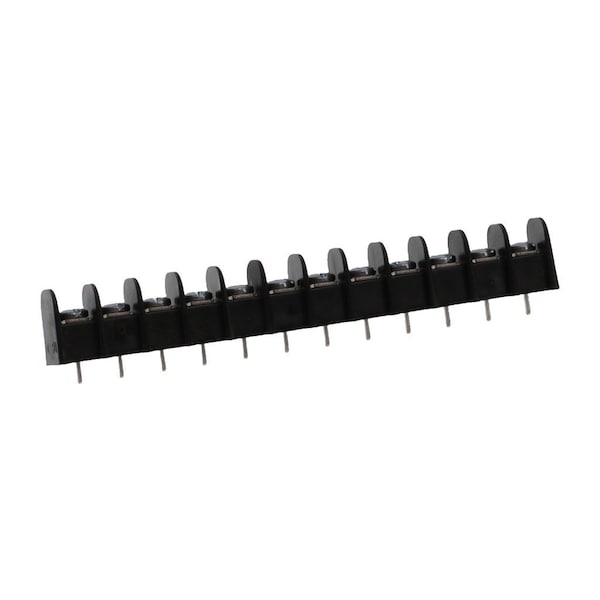

Molex Barrier Strip, 1 Row, 300 V, 14 AWG 387206312 - main

Barrier Strip, 1 Row, 300 V, 14 AWG

  • Mfr # 387206312

  • Zoro # G805918149

product price: $8.19
/ea
Sold in multiples of 50 for $409.50

Key Features

Number of Rows
1
Maximum Voltage
300 V
For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
Pitch - Termination Interface
9.53mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
387206312
Zoro #
G805918149
UPC #
-
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
PC Tail Length
4.80mm
PCB Thickness - Recommended
3.18mm

Details

Item
Barrier Strip
Number of Rows
1
Maximum Voltage
300 V
Pitch - Termination Interface
9.53mm
Shrouded
Dual-Barrier
Entry Angle
Horizontal
Panel Mount
No
Polarized to Mating Part
No
PCB Retention
None
Circuits (Loaded)
12
Current - Maximum per Contact
15.0A
Lock to Mating Part
None
Surface Mount Compatible (SMC)
No
Material - Plating Termination
Tin
Orientation
Horizontal
Stackable
No
Material - Resin
Polyester
Plating min - Termination
3.810µm
Material - Plating Mating
Tin
Material - Metal
Brass
Temperature Range - Operating
-40° to +130°C
Color - Resin
Black
