Shop MOLEX

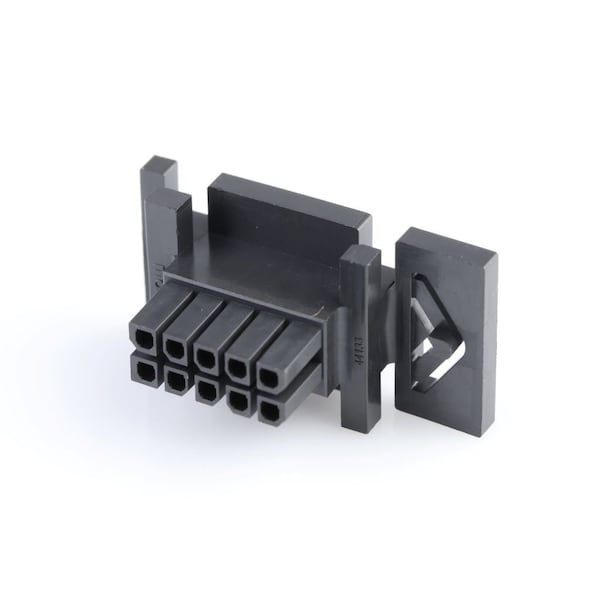

Board Connector, 10 Contact(S), 2 Row(S), Female, Straight, Crimp Terminal, Locking, Black

  • Mfr # 441331000

  • Zoro # G305892840

product price:
$
0.64
/ea
Sold in multiples of 136 for $87.04

Key Features

Max. Temp.
105°C
Application
Power, Wire-to-Board, Wire-to-Wire
Series
44133
Standards
CSA Certified; UL E29179
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
441331000
Zoro #
G305892840
UPC #
-
Country of Origin
China

Details

Max. Temp.
105°C
Application
Power, Wire-to-Board, Wire-to-Wire
Series
44133
Standards
CSA Certified; UL E29179
Color
Black
Hole Center to Center
3 mm
Connector Type
Receptacle
Material
Polyester
Flammability Rating
UL 94V-0
Number of Rows
2
Number of Contacts
10
Pitch - Mating Interface
3.00mm
CSA
LR19980
Material - Resin
Polyester
Flammability
94V-0
Polarized to Mating Part
Yes
Panel Mount
Yes
UL
E29179
Circuits (maximum)
10
Product Name
Micro-Fit BMI
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
No
Stackable
No
Lock to Mating Part
No

Description

Board Connector, 10 Contact(S), 2 Row(S), Female, Straight, Crimp Terminal, Locking, Black Insulator, Receptacle
