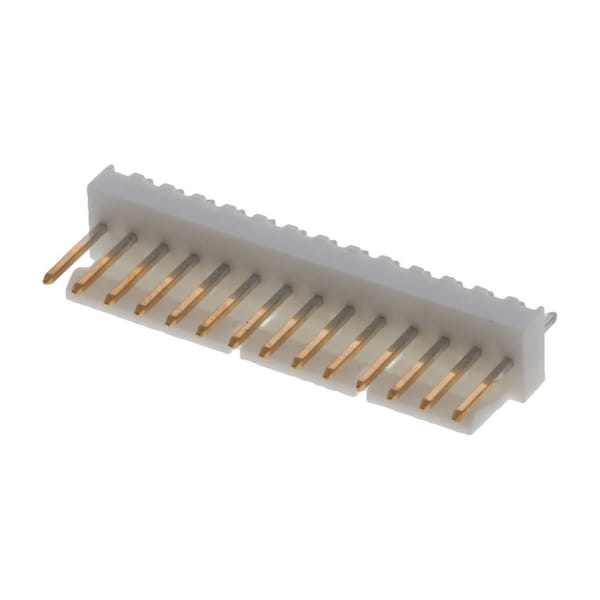

Board Connector, 14 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal,

Mfr # 22112142
Zoro # G505892251

Sold in multiples of 32 for $88.00

Key Features

Max. Temp.

235°C

Max. Voltage

500V

Application

Signal, Wire-to-Board

Series

6373

Standards

CSA Certified; UL E29179

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 22112142
Zoro #: G505892251
UPC #: -
Country of Origin: Mexico

Dimensions

PC Tail Length: 3.56mm
PCB Thickness - Recommended: 1.60mm

Details

Max. Temp.: 235°C
Max. Voltage: 500V
Application: Signal, Wire-to-Board
Series: 6373
Standards: CSA Certified; UL E29179
Hole Center to Center: 2.54 mm
Terminal Type: Through Hole
Color: Natural
Material: Nylon
Contact Finish: Gold Plated
Current Rating: 4 A
Number of Contacts: 14
Number of Rows: 1
Flammability Rating: UL 94V-0
Pitch - Mating Interface: 2.54mm
Circuits (Loaded): 14
Max-Duration: 5
Flammability: 94V-0
PCB Retention: None
Material - Plating Mating: Gold
Orientation: Vertical
Product Name: KK 254
Shrouded: Partial
Material - Resin: Nylon
Material - Metal: Brass
UL: E29179
Stackable: No
Component Type: PCB Header
Polarized to PCB: No
Color - Resin: Natural (White)
Durability (mating cycles max): 50
Breakaway: No
Glow-Wire Capable: No
Polarized to Mating Part: Yes
Temperature Range - Operating: See Product Specification
CSA: LR19980
Guide to Mating Part: No
First Mate / Last Break: No
Max-Temp: 235
Current - Maximum per Contact: 4.0A
PCB Locator: No
Lock to Mating Part: Yes

Description

Board Connector, 14 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Polarized Lck, Red Insulator, Receptacle
