Shop MOLEX

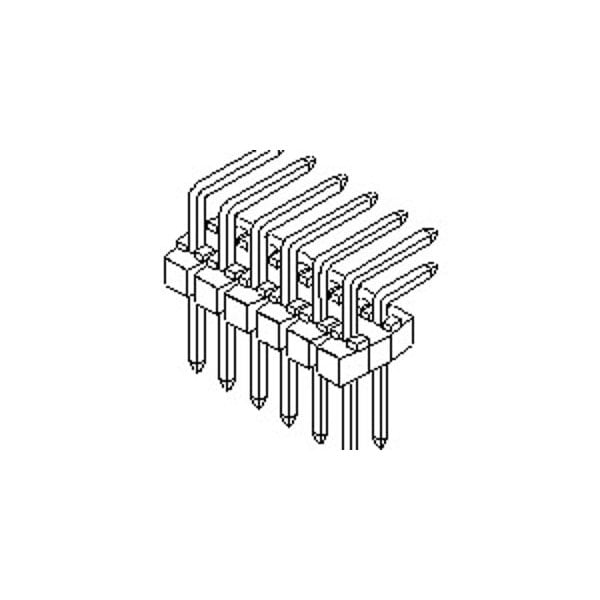

Board Connector, 16 Contact(S), 2 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black

  • Mfr # 901220928

  • Zoro # G005891211

product price:  $2.49
/ea
Sold in multiples of 32 for $79.68

Key Features

Application
Signal, Wire-to-Board
Series
90122
Material - Resin
Polyester
Polarized to PCB
No
PCB Retention
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
901220928
Zoro #
G005891211
UPC #
-
Country of Origin
Singapore

Dimensions

PC Tail Length
2.90mm

Details

Application
Signal, Wire-to-Board
Series
90122
Material - Resin
Polyester
Polarized to PCB
No
PCB Retention
None
Number of Rows
2
Voltage - Maximum
350V
Material - Plating Mating
Gold
Keying to Mating Part
None
Material - Metal
Brass
Color - Resin
Black
Glow-Wire Capable
No
Guide to Mating Part
No
Current - Maximum per Contact
3.0A
Material - Plating Termination
Tin
Stackable
No
Shrouded
No
Breakaway
Yes
Lock to Mating Part
None
Temperature Range - Operating
-55° to +125°C
Termination Interface Style
Through Hole
Pitch - Mating Interface
2.54mm
Orientation
Right Angle
PCB Locator
No
First Mate / Last Break
No
Polarized to Mating Part
No
Product Name
C-Grid III
Component Type
PCB Header
Circuits (Loaded)
16

Description

Board Connector, 16 Contact(S), 2 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
