  11. Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal,

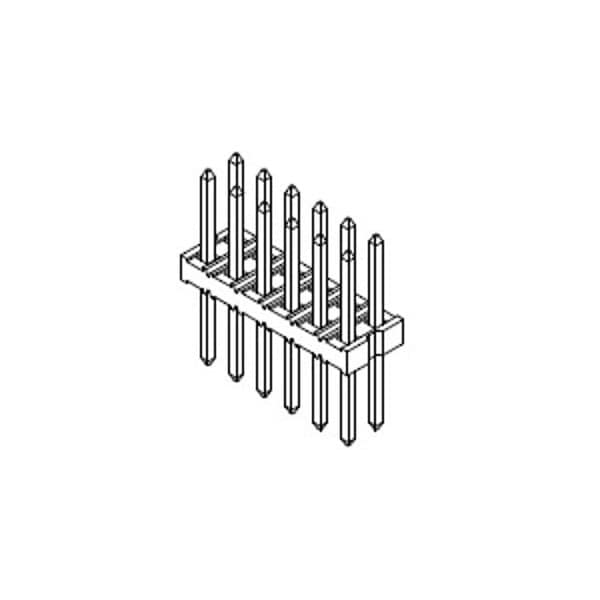

Molex Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal, 877582016 - main

Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal,

  • Mfr # 877582016

  • Zoro # G405891217

product price: $1.45
/ea
Sold in multiples of 62 for $89.90

Key Features

Max. Voltage
125V
Max. Temp.
250°C
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
877582016
Zoro #
G405891217
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.60mm
Mated Height
4.00mm

Details

Max. Voltage
125V
Max. Temp.
250°C
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
Color
Black
Terminal Type
Through Hole
Material
Nylon
Features
Breakaway; Surface Mount Compatible
Hole Center to Center
2 mm
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Number of Rows
2
Terminal Finish
Tin Plated
Current Rating
2 A
Number of Contacts
20
Temperature Range - Operating
-55° to +105°C
Lock to Mating Part
None
Component Type
PCB Header
Max-Cycle
1
Material - Metal
Phosphor Bronze
Max-Duration
3
First Mate / Last Break
No
PCB Locator
No
PCB Retention
None
Max-Temp
250
Product Name
Milli-Grid
Stackable
No
Durability (mating cycles max)
100
Polarized to Mating Part
No
Flammability
94V-0
Material - Plating Termination
Tin
Keying to Mating Part
None
Guide to Mating Part
No
Glow-Wire Capable
No
UL
E29179
Shrouded
No
Pitch - Mating Interface
2.00mm
Current - Maximum per Contact
2.0A
Material - Resin
Nylon
Circuits (Loaded)
20
Material - Plating Mating
Gold
Plating min - Mating
0.381µm
Orientation
Vertical
Polarized to PCB
No
Breakaway
Yes

Description

Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
