  11. Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal,

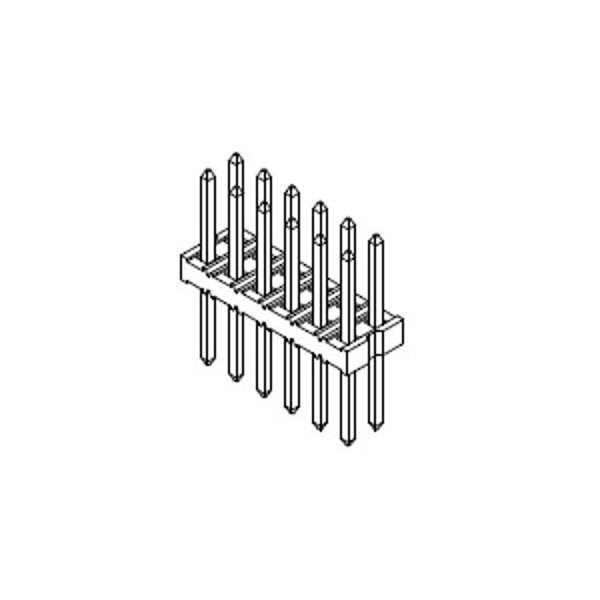

Molex Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal, 877582616 - main

Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal,

  • Mfr # 877582616

  • Zoro # G605891185

product price: $1.89
/ea
Sold in multiples of 47 for $88.83

Key Features

Max. Voltage
125V
Max. Temp.
250°C
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
877582616
Zoro #
G605891185
UPC #
-
Country of Origin
Indonesia

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
2.60mm
PCB Thickness - Recommended
1.60mm
Mated Height
4.00mm

Details

Max. Voltage
125V
Max. Temp.
250°C
Application
Board-to-Board, Signal
Series
87758
Standards
UL E29179
Hole Center to Center
2 mm
Terminal Type
Through Hole
Material
Nylon
Features
Breakaway; Surface Mount Compatible
Color
Black
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
26
Number of Rows
2
Current Rating
2 A
Contact Finish
Gold Plated
Temperature Range - Operating
-55° to +105°C
Plating min - Mating
0.381µm
PCB Locator
No
Material - Metal
Phosphor Bronze
Max-Cycle
1
First Mate / Last Break
No
Polarized to Mating Part
No
Glow-Wire Capable
No
Polarized to PCB
No
Component Type
PCB Header
Circuits (Loaded)
26
Guide to Mating Part
No
Flammability
94V-0
Stackable
No
Pitch - Mating Interface
2.00mm
PCB Retention
None
Current - Maximum per Contact
2.0A
Breakaway
Yes
Lock to Mating Part
None
Orientation
Vertical
Shrouded
No
Durability (mating cycles max)
100
Max-Duration
3
UL
E29179
Keying to Mating Part
None
Material - Plating Termination
Tin
Max-Temp
250
Material - Plating Mating
Gold
Material - Resin
Nylon
Product Name
Milli-Grid

Description

Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
