  11. Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle

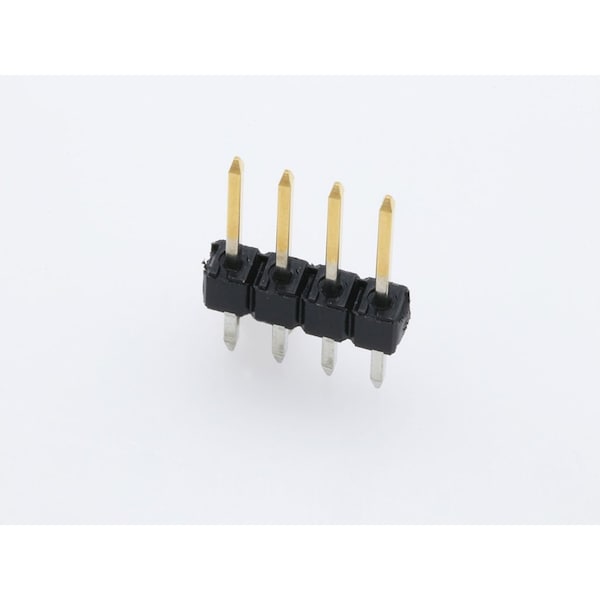

Molex Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle 22284045 - main

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle

  • Mfr # 22284045

  • Zoro # G705891993

product price: $0.18
/ea
Sold in multiples of 496 for $89.28

Key Features

Max. Temp.
260°C
Max. Voltage
500V
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22284045
Zoro #
G705891993
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.05mm

Details

Max. Temp.
260°C
Max. Voltage
500V
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
Color
Black
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Features
Breakaway; Surface Mount Compatible
Material
High Temperature Thermoplastic
Terminal Finish
Tin Plated
Number of Contacts
4
Current Rating
4 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Rows
1
PCB Retention
None
First Mate / Last Break
No
Pitch - Mating Interface
2.54mm
Polarized to PCB
No
Keying to Mating Part
None
Temperature Range - Operating
See Product Specification
Orientation
Vertical
Max-Temp
260
Polarized to Mating Part
No
Material - Plating Termination
Tin
CSA
LR19980
Glow-Wire Capable
No
Breakaway
Yes
Shrouded
No
Circuits (Loaded)
4
Stackable
No
Product Name
KK 254
PCB Locator
No
Material - Resin
High Temperature Thermoplastic
Max-Duration
5
Material - Metal
Brass
UL
E29179
Material - Plating Mating
Gold
Lock to Mating Part
None
Current - Maximum per Contact
4.0A
Durability (mating cycles max)
100
Flammability
94V-0
Guide to Mating Part
No
Component Type
PCB Header
Plating min - Mating
0.381µm
