  11. Insulated Multitap Connector, 4.00 In. L
Shop All Mechanical Lugs
Polaris

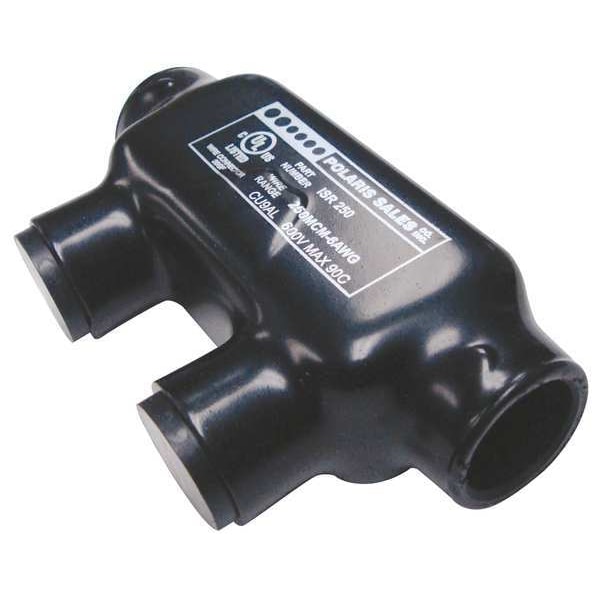

Insulated Multitap Connector, 4.00 In. L

product price: $35.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type In Line
  • No. of Ports 2
  • Min. Conductor Size 6 AWG
  • Max. Conductor Size 250 kcmil
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 6 AWG
Max. Conductor Size 250 kcmil
Stud Size 5/16 in
Length 4.0 in
Width 1.19 in
Length (Straight Wireway) 4.0 in
Strip Length 1 3/8 in
Overall Length 4 in
For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG
For Stranded Copper Wire Size - Minimum 6 AWG
Overall Width 1.19 in
For Stranded Copper Wire Size - Maximum 250 kcmil
Hex Size 5/16 in
Conductor Al Size Range 250 MCM – 6 AWG
Conductor Cu Size Range 250 MCM – 6 AWG
Hex Wrench Size 5/16

Details

Item Insulated Multitap Connector
Connector Type In Line
No. of Ports 2
Insulation Material Plastisol
Max. Voltage 600V AC/DC
Body Material Aluminum
Screw Material Aluminum
Head Style Hex
Standards cULus, UL 486A
Direct Burial Rated No
Color Black
RoHS Compliant Yes
For Conductor Material Aluminum, Copper
Maximum Voltage 600 V
Maximum Operating Temperature 194 Degrees F
Compatible with Product Type Copper and Aluminum Cables
Tap Shape T
Finish Plastisol
Torque 360 in-lb
Minimum Operating Temperature -49 Degrees F
Special Features Abrasion and Chemical Resistant, UV Resistant, Will Not Support Combustion
Number of Ports 2
Max Torque 360
Assortment Black UV Coated Pre-Insulated Connectors
Conductors Count 2
Al Conductor Max Amp 230
Application Splice
Cu Conductor Max Amp 290
Ul File No E186991
Wire Cable Class Class B, Class C
Env Temp Cold Temperature rated to -45C
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Ul Standard UL 486A/B
Certifications cULus

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
