  11. Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, Solder Terminal

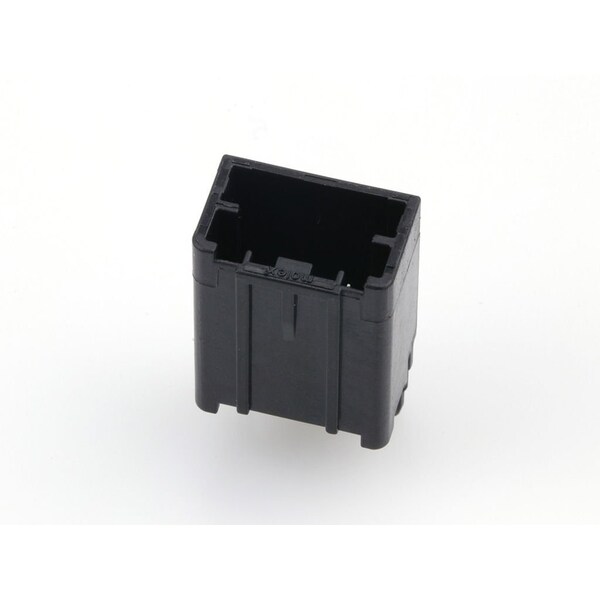

Molex Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, Solder Terminal 347920040 - main

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, Solder Terminal

  • Mfr # 347920040

  • Zoro # G605892427

product price: $1.25
/ea
Sold in multiples of 80 for $100.00

Key Features

Max. Temp.
105°C
Max. Voltage
500V DC
Application
Automotive, Power, Signal, Wire-to-Board
Series
34792
Hole Center to Center
2 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
347920040
Zoro #
G605892427
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
2.90mm

Details

Max. Temp.
105°C
Max. Voltage
500V DC
Application
Automotive, Power, Signal, Wire-to-Board
Series
34792
Hole Center to Center
2 mm
Terminal Type
Through Hole
Material
Polyester Alloy
Color
Black
Current Rating
4 A
Terminal Finish
Tin Plated
Number of Rows
1
Number of Contacts
4
Contact Finish
Tin Plated
Glow-Wire Capable
No
Component Type
PCB Header
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Material - Resin
Polyester Alloy
Breakaway
No
Pitch - Mating Interface
2.00mm
Material - Plating Termination
Tin
Current - Maximum per Contact
4.0A (for reference only)
Material - Plating Mating
Tin
Guide to Mating Part
No
Orientation
Vertical
Material - Metal
Brass
Keying to Mating Part
Yes
Polarized to PCB
Yes
First Mate / Last Break
No
Circuits (Loaded)
4
Product Name
Mini50
Polarized to Mating Part
Yes
Voltage - Maximum
14V (typical operating)
Lock to Mating Part
Yes
