  11. Board Connector, 40 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black

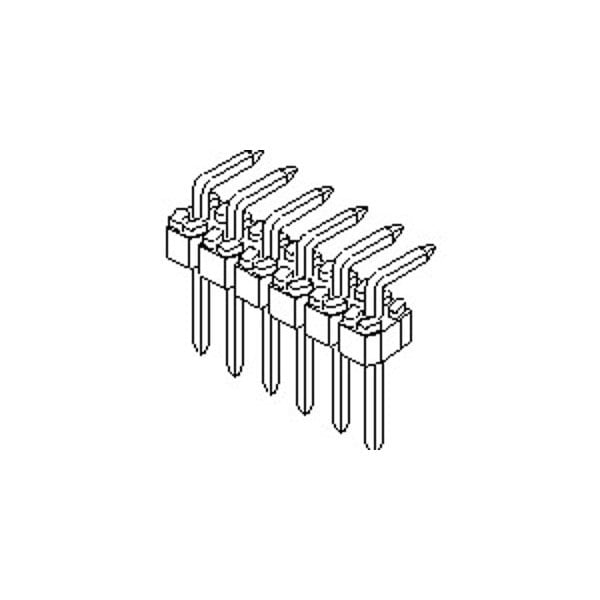

Molex Board Connector, 40 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black 901210800 - main

Board Connector, 40 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black

  • Mfr # 901210800

  • Zoro # G505891162

product price: $3.99
/ea
Sold in multiples of 20 for $79.80

Key Features

Application
Signal, Wire-to-Board
Series
90121
Plating min - Mating
0.381µm
Material - Plating Termination
Tin
Guide to Mating Part
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901210800
Zoro #
G505891162
UPC #
-
Country of Origin
Ireland

Dimensions

PC Tail Length
2.90mm

Details

Application
Signal, Wire-to-Board
Series
90121
Plating min - Mating
0.381µm
Material - Plating Termination
Tin
Guide to Mating Part
No
Voltage - Maximum
350V
Number of Rows
1
Material - Plating Mating
Gold
Polarized to PCB
No
First Mate / Last Break
No
Polarized to Mating Part
No
PCB Locator
No
UL
E29179
Stackable
No
Max-Temp
260
Color - Resin
Black
Max-Duration
5
Orientation
Right Angle
Breakaway
Yes
Keying to Mating Part
None
Max-Cycle
1
Termination Interface Style
Through Hole
Shrouded
No
Component Type
PCB Header
Product Name
C-Grid III
Material - Resin
Polyester
Circuits (Loaded)
40
Pitch - Mating Interface
2.54mm
Material - Metal
Brass
Glow-Wire Capable
No
Current - Maximum per Contact
3.0A
Lock to Mating Part
None
Flammability
94V-0
PCB Retention
None
Temperature Range - Operating
-55° to +125°C

Description

Board Connector, 40 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
