  11. Board Connector, 44 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Black

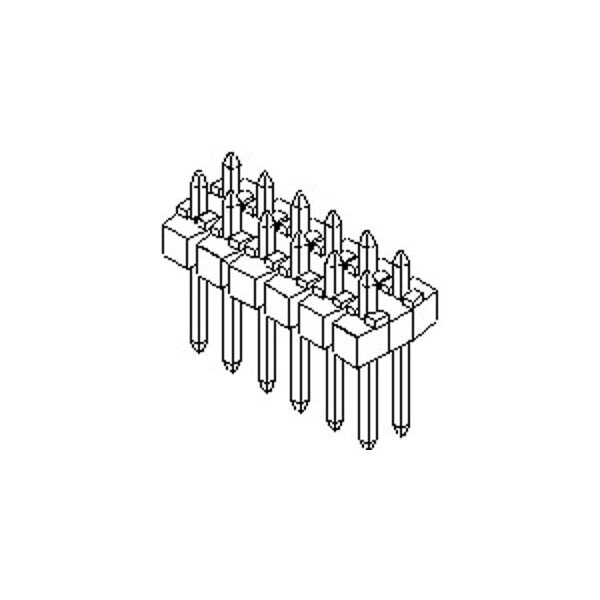

Molex Board Connector, 44 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Black 901310942 - main

Board Connector, 44 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Black

  • Mfr # 901310942

  • Zoro # G905890949

product price: $4.89
/ea
Sold in multiples of 235 for $1,149.15

Key Features

Max. Voltage
350V
Max. Temp.
235°C
Application
Signal, Wire-to-Board
Series
90131
Standards
CSA Certified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901310942
Zoro #
G905890949
UPC #
-
Country of Origin
Indonesia

Dimensions

PC Tail Length
2.90mm

Details

Max. Voltage
350V
Max. Temp.
235°C
Application
Signal, Wire-to-Board
Series
90131
Standards
CSA Certified
Features
Breakaway
Hole Center to Center
2.54 mm
Material
Polyester
Color
Black
Terminal Type
Through Hole
Terminal Finish
Tin Plated
Number of Contacts
44
Current Rating
3 A
Contact Finish
Gold Plated
Number of Rows
2
Temperature Range - Operating
-55° to +125°C
Max-Temp
235
PCB Retention
None
Material - Resin
Polyester
Max-Duration
3
Material - Plating Mating
Gold
Orientation
Vertical
Circuits (Loaded)
44
Component Type
PCB Header
Stackable
Yes
Pitch - Mating Interface
2.54mm
Lock to Mating Part
None
Glow-Wire Capable
No
Keying to Mating Part
None
First Mate / Last Break
No
CSA
LR19980
Material - Plating Termination
Tin
Polarized to Mating Part
No
Product Name
C-Grid III
Polarized to PCB
No
Max-Cycle
1
Current - Maximum per Contact
3.0A
Guide to Mating Part
No
Material - Metal
Brass
Breakaway
Yes
PCB Locator
No
Shrouded
No

Description

Board Connector, 44 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
