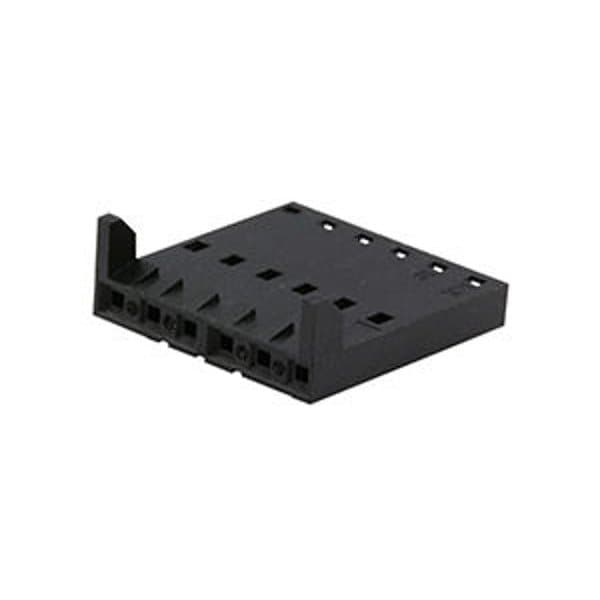

Board Connector, 5 Contact(S), 1 Row(S), Female, Straight, 0.1 Inch Pitch, Crimp Terminal, Locking,
Mfr # 50579505
Zoro # G505892558
product price: $0.31
/ea
Sold in multiples of 350 for $108.50
Key Features
Max. Temp.
105°C
Application
Signal, Wire-to-Board
Series
70066
Standards
CSA Certified; UL E29179
Hole Center to Center
2.54 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
50579505
Zoro #
G505892558
UPC #
-
Country of Origin
United States
Details
Max. Temp.
105°C
Application
Signal, Wire-to-Board
Series
70066
Standards
CSA Certified; UL E29179
Hole Center to Center
2.54 mm
Connector Type
Receptacle
Material
Polyester Alloy
Color
Black
Flammability Rating
UL 94V-0
Number of Rows
1
Number of Contacts
5
Product Name
SL
Glow-Wire Capable
No
Flammability
94V-0
Circuits (maximum)
5
Keying to Mating Part
None
Material - Resin
Polyester Alloy
Stackable
Yes
Temperature Range - Operating
-40° to +105°C
UL
E29179
CSA
LR19980
Lock to Mating Part
Yes
Pitch - Mating Interface
2.54mm
Description
Board Connector, 5 Contact(S), 1 Row(S), Female, Straight, 0.1 Inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug
