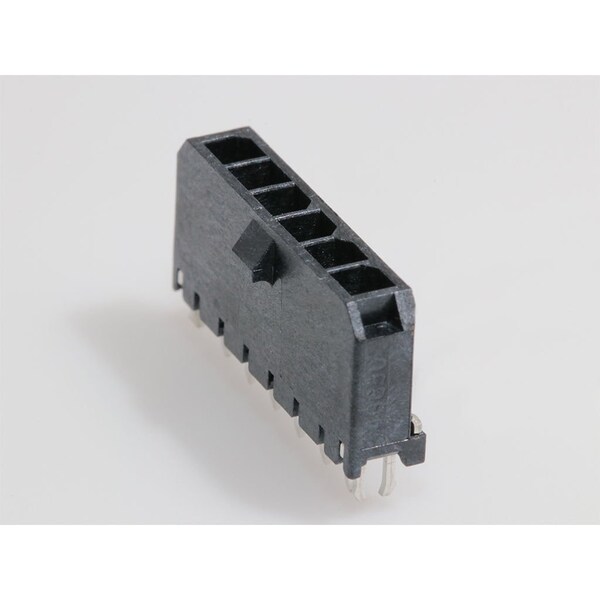

Board Connector, 6 Contact(S), 1 Row(S), Male, Straight, 0.118 Inch Pitch, Solder Terminal, Black
Mfr # 436500619
Zoro # G105893573
product price:Â
$
1.59
/ea
Sold in multiples of 55 for $87.45
Key Features
Max. Temp.
260°C
Max. Voltage
600V
Standards
CSA Certified; UL E29179
Color
Black
Features
Glow-Wire Capable; Surface Mount Compatible
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 436500619
- Zoro #
- G105893573
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Plating Thickness
- 0.381 µm
Details
- Max. Temp.
- 260°C
- Max. Voltage
- 600V
- Standards
- CSA Certified; UL E29179
- Color
- Black
- Features
- Glow-Wire Capable; Surface Mount Compatible
- Terminal Type
- Through Hole - Kinked Pin
- Hole Center to Center
- 3 mm
- Material
- High Temperature Thermoplastic
- Flammability Rating
- UL 94V-0
- Contact Finish
- Gold Plated
- Number of Rows
- 1
- Current Rating
- 8.5 A
- Number of Contacts
- 6
- Terminal Finish
- Tin Plated
Description
Board Connector, 6 Contact(S), 1 Row(S), Male, Straight, 0.118 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
