Shop ZORO SELECT

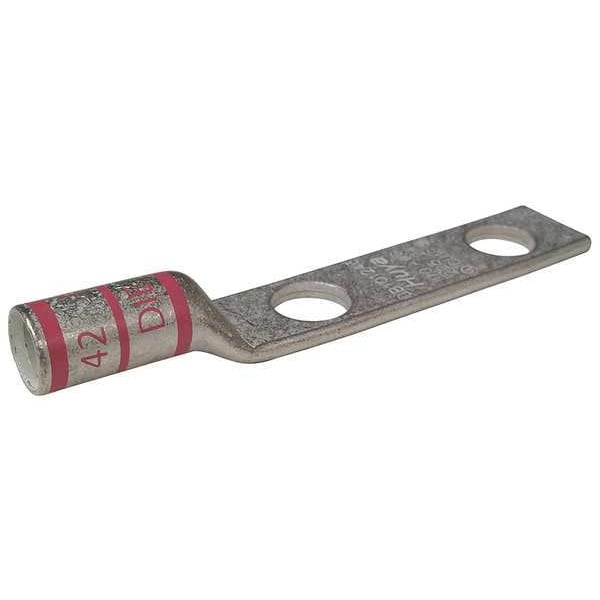

Two-Hole Compression Lug, 1/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, Pink

  • Mfr # 24C381

  • Zoro # G4659733

product price:  $4.39
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24C381
Zoro #
G4659733
UPC #
190735432273
Country of Origin
China

Dimensions

For Wire Size
1/0 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.75 in
Barrel Length
Long
Length
2.49"
Cable Size
1/0
Width
3/4"
Length (Straight Wireway)
2.49 in
Strip Length
1 1/8 in
Tongue Length
1.19 in
Tongue Thickness
0.13 in
Overall Width
0.75 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
Barrel Outside Diameter
0.52 in
Barrel Inside Diameter
0.39 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Hole Size
0.27 in
Overall Length
2.49 in
Wire Rope Length
2.49 in

Details

Item
Two-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
42
Color Code
Pink
Standards
CSA Certified, UL Listed
Peep Hole
No
Connector Type
Straight Barrel
Hole Center to End
0.25 in
Hole Center to Center
0.625 in
Lug Compression Connector Type
Two-Hole Lug Compression Connector
Tongue Style
Standard
RoHS Compliant
Yes
Maximum Voltage
35 kV
Maximum Operating Temperature
300 Degrees F
Seam Style
Seamless
Current
230 A
Termination Style
Crimp
Contact Finish
Tin
For Wire Type
Stranded
Special Features
Corrosion Resistant, High-Conductivity Construction
Barrel Style
Chamfered
Number of Holes
2

Description

Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Pink, Die Code 42, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole No, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
