  11. Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black Insulator,

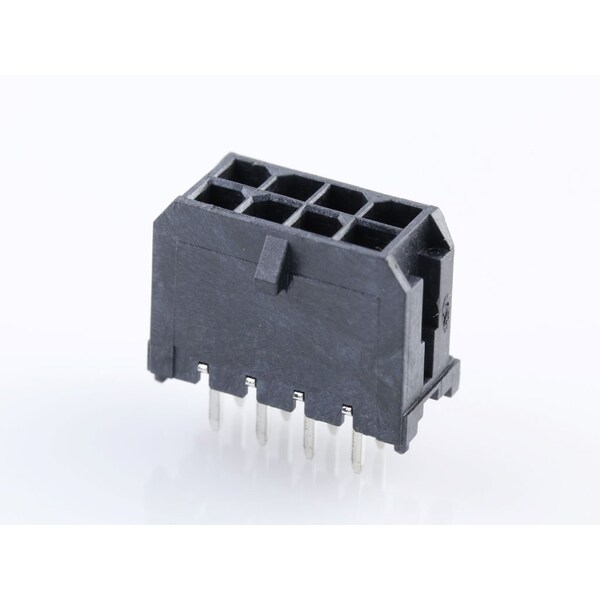

Molex Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black Insulator, 430450828 - main

Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black Insulator,

  • Mfr # 430450828

  • Zoro # G505892626

product price: $2.19
/ea
Sold in multiples of 40 for $87.60

Key Features

Max. Voltage
600V
Max. Temp.
260°C
Application
Power, Wire-to-Board
Series
43045
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430450828
Zoro #
G505892626
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
Mated Height
17.64mm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.18mm

Details

Max. Voltage
600V
Max. Temp.
260°C
Application
Power, Wire-to-Board
Series
43045
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Color
Black
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
3 mm
Current Rating
8.5 A
Contact Finish
Gold Plated
Number of Contacts
8
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Rows
2
Current - Maximum per Contact
8.5A
Component Type
PCB Header
Material - Plating Termination
Tin
Flammability
94V-0
Max-Temp
260
Material - Metal
Brass
Durability (mating cycles max)
30
CSA
LR19980
Breakaway
No
UL
E29179
Shrouded
Fully
Material - Resin
High Temperature Thermoplastic
Stackable
No
Max-Cycle
3
Polarized to PCB
Yes
Pitch - Mating Interface
3.00mm
Orientation
Vertical
Temperature Range - Operating
-40° to +125°C
PCB Locator
Yes
Plating min - Mating
0.381µm
Product Name
Micro-Fit 3.0
Material - Plating Mating
Gold
Lock to Mating Part
Yes
Max-Duration
30
PCB Retention
None
Glow-Wire Capable
Yes
Circuits (Loaded)
8

Description

Board Connector, 8 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle
